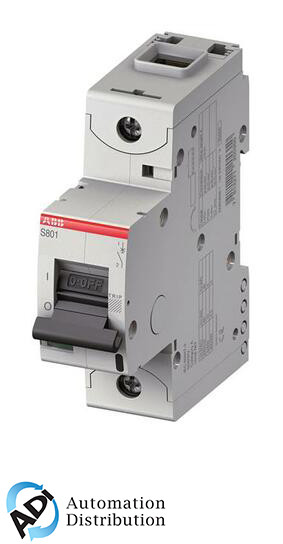

ABB S801U-K20 S800U High Performance Circuit Breaker, 1-Pole, 20A, K Curve, 30kA, UL 489
ABB
$180.00
ABB S801U-K20 S800U High Performance Circuit Breaker, 1-Pole, 20 A, K Curve
The ABB S801U-K20 is a 1-pole high performance circuit breaker from the ABB S800U series, rated 20 A with a K tripping characteristic and a 30 kA breaking capacity. It is UL 489 listed, so it can be used for branch circuit protection in control panels, machinery and building distribution.
The K curve trips instantaneously at 8 to 14 x In, which makes it a strong fit for motors, transformers and other inductive loads with high inrush current. Automation Distribution supplies the S801U-K20 as an authorized ABB distributor.
Key Features
- 1-pole construction, rated current 20 A
- K tripping characteristic, magnetic trip at 8 to 14 x In
- 30 kA breaking capacity
- Thermal trip for overload protection and electromagnetic trip for short-circuit protection
- 35 mm DIN rail mounting
- UL 489 listed for branch circuit protection
Specifications
| Manufacturer | ABB |
| Part Number | S801U-K20 |
| Series | S800U |
| Product Type | High Performance Circuit Breaker |
| Number of Poles | 1 |
| Rated Current | 20 A |
| Tripping Characteristic | K curve (8 to 14 x In) |
| Breaking Capacity | 30 kA |
| Voltage Rating | (240 V AC) |
| Standards | IEC/EN 60947-2 / UL 489 / CSA C22.2 No.5 |
| Mounting | 35 mm DIN rail |
Part Number Breakdown: S801U-K20
| Code | Meaning |
|---|---|
| S801U | S800U series, 1-pole |
| K | Tripping characteristic: K curve |
| 20 | Rated current: 20 A |
Typical Applications
The S801U-K20 is typically selected for motors, transformers and other inductive loads with high inrush current, with UL 489 branch circuit protection for industrial control panels and OEM machinery.
Authorized ABB Distributor. Automation Distribution supplies genuine ABB circuit protection products. Contact our team for technical support, cross-references or volume pricing on the S801U-K20.
- Series:
- S800U
- Number of Poles:
- 1
- Rated Current:
- 20 A
- Tripping Characteristic:
- K curve (8 to 14 x In)
- Breaking Capacity:
- 30 kA
- Voltage Rating:
- (240 V AC)
- Standards:
- IEC/EN 60947-2 / UL 489 / CSA C22.2 No.5
- Mounting:
- 35 mm DIN rail
- Spec Sheet:
- View
