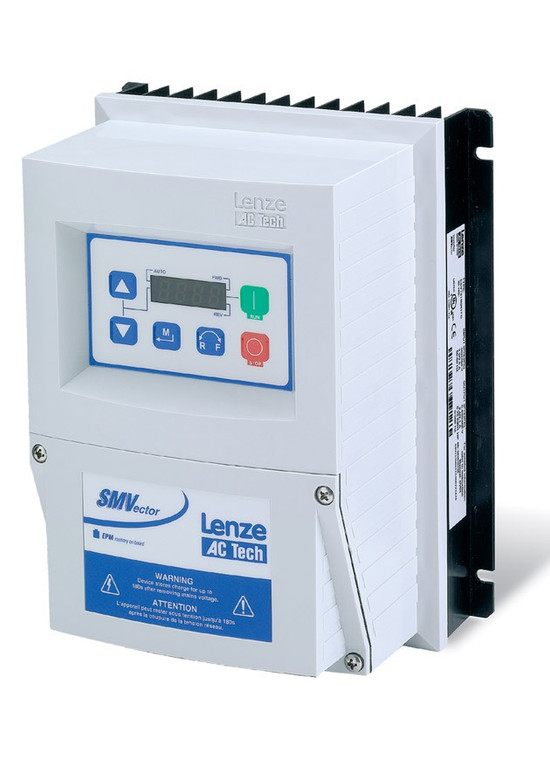

Lenze ESV222N02YXC SMV Drive, 3HP 240V (NEMA 4X)

(No reviews yet) Write a Review
SKU:
ESV222N02YXC
Condition:
New
On Sale
  • Lenze ESV222N02YXC SMV Drive, 3HP 240V (NEMA 4X)
  • Lenze ESV222N02YXC SMV Drive, 3HP 240V (NEMA 4X)
Now: $695.41
Was: $1,069.86

Description

SMV Drive, 3HP 240V (NEMA 4X). The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter ideal for European Community Compliance. It is available in power ranges from 0.33 Hp...30 Hp (0.25 kW...22.0 kW) with global voltages from 120 VAC through 600 VAC.

AC Drive, 2hp, 480-600V, 3 Phase, NEMA 4X Indoor/Outdoor, Washdown Duty

Product Series SMV
Input Voltage 480/600V, 3 Phase
Horsepower 2 hp
Output 3 Phase Output
Housing/Enclosure NEMA 4/4X (IP66)
Type of Drive Volts per Hertz (V/Hz)
Options Outdoor Duty
Product Series SMVector NEMA 4X Outdoor
Warranty 2 Years
Weight - lbs. 6.7000

Rated Input Voltage



  • 480-600V 10%

  • 3 phase

  • 50/60Hz 2Hz


Rated Output Current



  • 240VAC

  • 3 phase

  • 2.7 amps


Dimensions



  • Height: 7.52 in

  • Width: 3.90 in

  • Depth: 5.45 in


Weight



  • 5 lbs


Housing



  • NEMA 1/4X

View AllClose

Additional Information

Product Code:
ESV222N02YXC
Series:
SMVector Series
Power Rating:
3 HP
Installed Communications:
Communications not installed
Voltage:
208 / 240 VAC
Phase:
Single or three phase
Input line Configuration:
Unfiltered without disconnect
