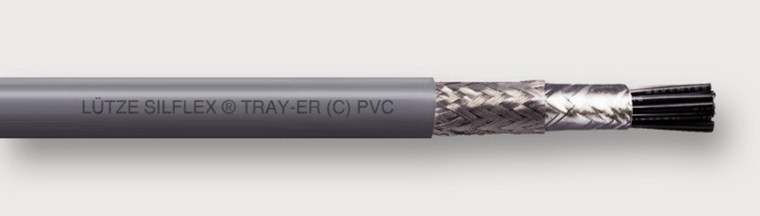

Lutze A3091802 control tc (c) pvc awg18/02c by the Foot
LutzeTechnical Data
Construction
Description
SILFLEX???? CONTROL CABLE (C) PVC
Number of conductors/cross-section
(2?????AWG18)
Jacket material
PVC
Jacket color
grey RAL 7001
Outer ??
7,7 mm
Outer ??
0,305 inch
Weight
9,1 kg/100 m
Weight
61 Lbs/Mft
Cu-Index
3,4 kg/100 m
Cu-Index
23 Lbs/Mft
Element 1
Element construction
AWG18/2C
Conductor construction
AWG 18 (19/30)
Conductor
- AWG conductor
- CU-wire bare
Conductor category
fine wire
Conductor marking
- black
- with white number print
Conductor insulation
- PVC/Nylon
- THHN ??????? THWN
overall construction
Drain wire
CU-wire tin-plated
Overall shield
- Aluminium laminate
- Foil shield
- Braid shield
- Tinned copper wires
Jacket characteristics
- Oil resistant
- Silicone-free
Technical data
Rated voltage UN
- 600 V TC-ER/MTW
- 1000 V WTTC
Temperature range fixed
-40 ?????C ??????? +90 ?????C
Minimum bending radius fixed
6?????D
Element 1
Element construction
AWG18/2C
Approvals/Standards
Approvals
- TC
- UL Type MTW or DP-1
- Class 1 Div. 2 per NEC
- Art. 336, 392, 501
- cUL TC
- CIC FT4
- UL 1277
UL style
AWM 20886
Conformity
- CE
- REACH
- RoHS
Oil resistant according to
Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2006/95/EC
Multi-conductor control cables with TC-ER ???????Exposed Run??????? approval Machine and device construction, HVAC technology, heating and climate technology Compliant with NFPA 79 standards ???????TC-ER?????????????? for use on machines and in open cable ducts ???????WTTC??????? Wind Turbine Tray Cable for use in wind turbines ???????MTW??????? Machine Tool Wire ???????PLTC-ER??????? Power Limited Tray Cable ??????? Exposed Run ???????ITC-ER??????? Instrumentation Tray Cable In dry, moist and wet rooms
