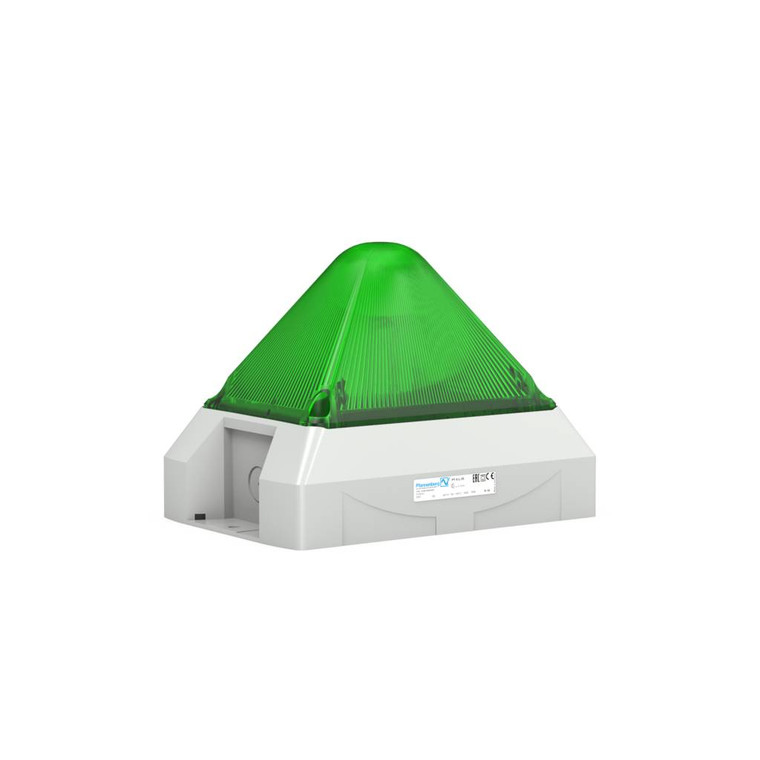

Pfannenberg Py X-L-15 115V Flashing Light 15J Adj Fl 90-135Vac, Gry Hs Gr Lens
- SKU:
- 21561156055
- Condition:
- New
- MOUNTING STYLE:
- Surface or Flush
- BASE COLOR:
- RAL 7035 (Lt. Grey)
- LENS COLOR:
- Green
- MATERIAL:
- Polycarbonate/ABS blend housing
- ENVIRONMENTAL PROTECTION STANDARD:
- Type 4/4X, IP 66
- BULB TYPE:
- Xenon
- FLASH ENERGY:
- 15 J
- FLASH Rate:
- 1 Hz = 60 flashes/min, .75 Hz = 45 flashes/min, .5 Hz = 30 flashes/min, .1 Hz = 6 flashes/min
- LIGHT INTENSITY (DIN 5037):
- 190 cd
- FLASH RATE:
- Adjustable
- MAX VIEWING DISTANCE:
- 320 m
- SERVICE LIFE OF LIGHT SOURCE:
- Light emission still 70% after 800,000,000 flashes
- APPROVALS:
- UL, cUL, CE, VdS, EN 54-23
- WEIGHT (lbs):
- 0.96976
- Width (in):
- 8.4
- Height (in):
- 6.2
- Depth (in):
- 5.67
Description
PY X-L-15 115V Flashing light 15J adj fl 90-135VAC, GRY hs GR lens
Exclusive Pfannenberg xenon flash technology
Reaches a 15 Joules Flash with with adjustable flash rate
Adjustable flash rate: 0.1, 0.5, 0.75, and 1.0 Hz
Selectable flash frequency and synchronized flash
Option: control input to activate flash, direct control via PLC
8,000,000 flash service life
Huge visual 3D-Coverage area, more as double as a 10 J flashing light with a 180?? x 360?? visible field
Operates in any climate
Surface or flush-panel mounted
10-Year Warranty
