Schneider Electric ATS22C59Q Soft Starter 590A 440V 230V Ctrl
Schneider Electric
$7,293.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

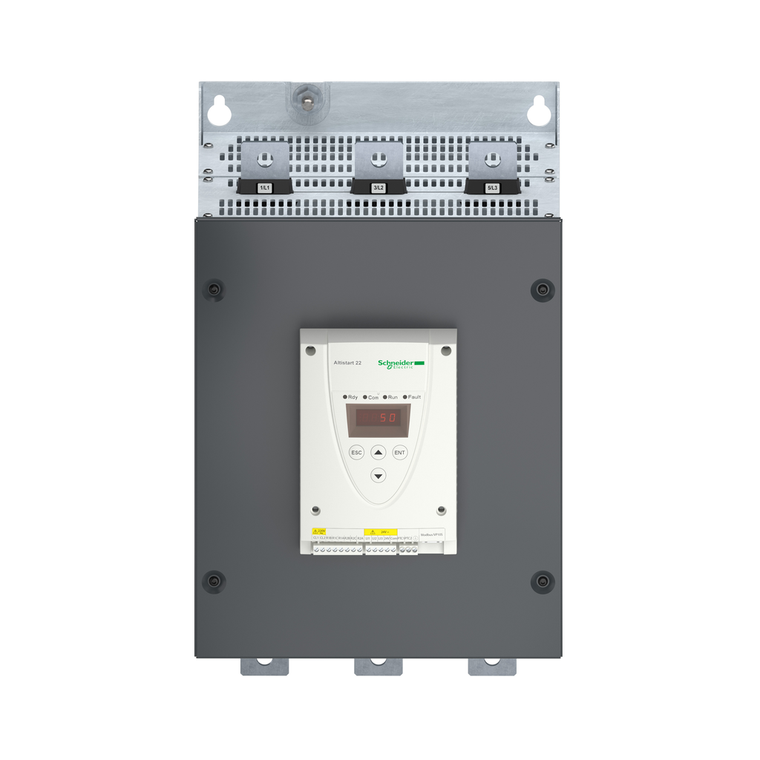

Schneider Electric ATS22C59Q Soft Starter 590A 440V 230V Ctrl
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 590A and 230V to 440V, a rated power up to 355kW (400V to 440V in supply line) and up to 500kW (440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
- Pollution Degree:
- level 2 IEC 60664-1
- Power Range:
- 110-220 kW 200-240 V 3 phase || 250-500 kW 380-440 V 3 phase
- Utilisation Category:
- AC-53A
- China Rohs Regulation:
- X
- Function Available:
- internal bypass
- Net Weight:
- 50 kg
- Product Or Component Type:
- soft starter
- Phase:
- 3 phase
- Network Frequency:
- 45...66 Hz
- Component Name:
- ATS22
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Discrete Input Number:
- 3
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Connection:
- to the motor delta terminals || in the motor supply line
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Motor Starter Type:
- soft starter
- Maximum Switching Current:
- 5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs
- Installed Device:
- 31
- Rohs Exemption Information:
- Yes
- Physical Interface:
- RS485 multidrop
- Discrete Input Type:
- LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
- Type Of Cooling:
- forced convection
- Discrete Input Logic:
- positive logic LI1, LI2, LI3 < 5 V <= 2 mA > 11 V, >= 5 mA
- Assembly Style:
- with heat sink
- Icl Starter Rating:
- 590 A connection in the motor supply line for standard applications
- Supply Voltage Limits:
- 195-484 V
- Communication Data Link:
- serial
- Transmission Rate:
- 4800, 9600 or 19200 bps
- [Us] Rated Supply Voltage:
- 230...440 V - 15...10 %
- Warranty:
- 18 months
- Product Certifications:
- UL || CCC || C-tick || CSA || GOST
- Product Specific Application:
- pumps and fans
- Power Dissipation In W:
- 251 W for standard applications
- Ptc Probe Input:
- 750 Ohm
- Operating Position:
- vertical +/- 10 degree
- Depth:
- 339.7 mm
- Control Circuit Consumption:
- 20 W
- Discrete Output Number:
- 2
- Discrete Output Type:
- relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
- Noise Level:
- 56 dB
- Ambient Air Temperature For Storage:
- -25-70 °C
- Relative Humidity:
- 0-95 % without condensation or dripping water EN/IEC 60068-2-3
- Output Current:
- 0.4...1 Icl adjustable
- Protection Type:
- phase failure line || thermal protection motor || thermal protection starter
- Height:
- 455 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Communication Port Protocol:
- Modbus
- Product Destination:
- asynchronous motors
- Standards:
- EN/IEC 60947-4-2
- Width:
- 304 mm
- [Uc] Control Circuit Voltage:
- 230 V - 15...10 % 50/60 Hz
- Vibration Resistance:
- 1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm 2-13 Hz)EN/IEC 60068-2-6
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Connector Type:
- 1 RJ45
- Ip Degree Of Protection:
- IP00
- Motor Power Kw:
- 160 kW 230 V || 315 kW 400 V || 355 kW 440 V
- Factory Setting Current:
- 560 A
- Marking:
- CE
- Minimum Switching Current:
- 100 mA 12 V DC relay outputs)
- Electromagnetic Compatibility:
- conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr
- Range Of Product:
- Altistart 22
- Mercury Free:
- Yes
- Type Of Start:
- start with torque control (current limited to 3.5 In)
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
- Supply Frequency:
- 50...60 Hz - 10...10 %
- Discrete Input Voltage:
- 24 V <= 30 V
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)
