Schneider Electric GS2AH440 Ext Front Handle 100..400A 4,4X Red
Schneider Electric
$78.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

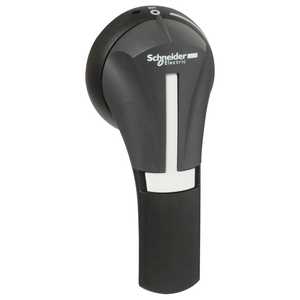

Schneider Electric GS2AH440 Ext Front Handle 100..400A 4,4X Red
TeSys GS external operating handle for 3-pole 30-400A UL fuse switch-disconnectors GS2EEU, GS2EU, GS2GU, GS2JU, GS2MU, GS2QU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 4, 4X, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).
- Line Rated Current:
- 30 A || 60 A || 100 A || 200 A || 400 A
- Type Of Operating Handle:
- external frontal
- Range Compatibility:
- TeSys TeSys GS GS2EU || TeSys TeSys GS GS2GU || TeSys TeSys GS GS2JU || TeSys TeSys GS GS2MU || TeSys TeSys GS GS2QU
- Device Short Name:
- GS2AH
- Range:
- TeSys
- Range Of Product:
- TeSys
- Toxic Heavy Metal Free:
- Yes
- Handle Colour:
- red
- Mercury Free:
- Yes
- Net Weight:
- 0.24 kg
- Marking:
- O-I
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Rotary Handle Padlocking:
- with
- Nema Degree Of Protection:
- NEMA 4/4X
- Product Or Component Type:
- rotary handle
- Handle Front Plate Colour:
- yellow
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- CSA || UL
- Catalog:
- View
- Datasheet:
- View
