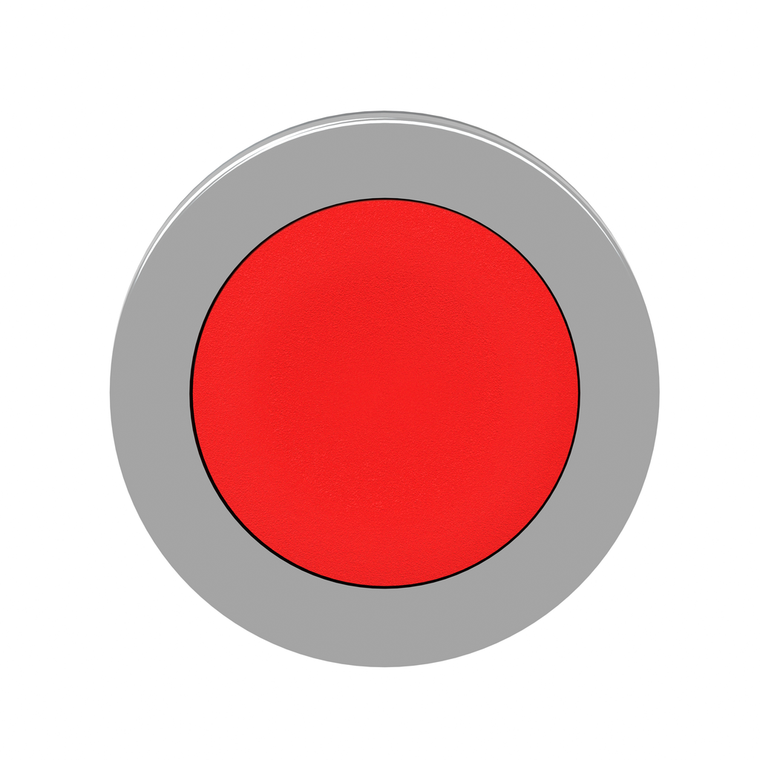

Schneider Electric ZB4FA4 Flush Red Caps Pb Head
Schneider Electric
$9.78
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Protective Treatment:
- TH
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sale Per Indivisible Quantity:
- 1
- Toxic Heavy Metal Free:
- Yes
- Operator Profile:
- red flush, unmarked
- Ambient Air Temperature For Storage:
- -40-70 °C
- Range Of Product:
- Harmony XB4
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Bezel Material:
- chromium plated metal
- Head Type:
- built-in-flush
- Cad Overall Height:
- 36.6 mm
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Circularity Profile:
- ENVEOLI1808008EN
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Device Presentation:
- basic element
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Environmental Disclosure:
- ENVPEP1808008EN
- Mounting Diameter:
- 30.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- ZB4F
- Warranty:
- 18 months
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Width:
- 36.6 mm
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- head for non-illuminated push-button
- Ik Degree Of Protection:
- IK06 IEC 50102
- Standards:
- CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Type Of Operator:
- spring return
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Shape Of Signaling Unit Head:
- round
- Cad Overall Depth:
- 31 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Overvoltage Category:
- class I IEC 60536
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
