Schneider Electric ZB5AC380 Pushbutton For Harsh Enviroment, Green,
Schneider Electric
$23.37
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

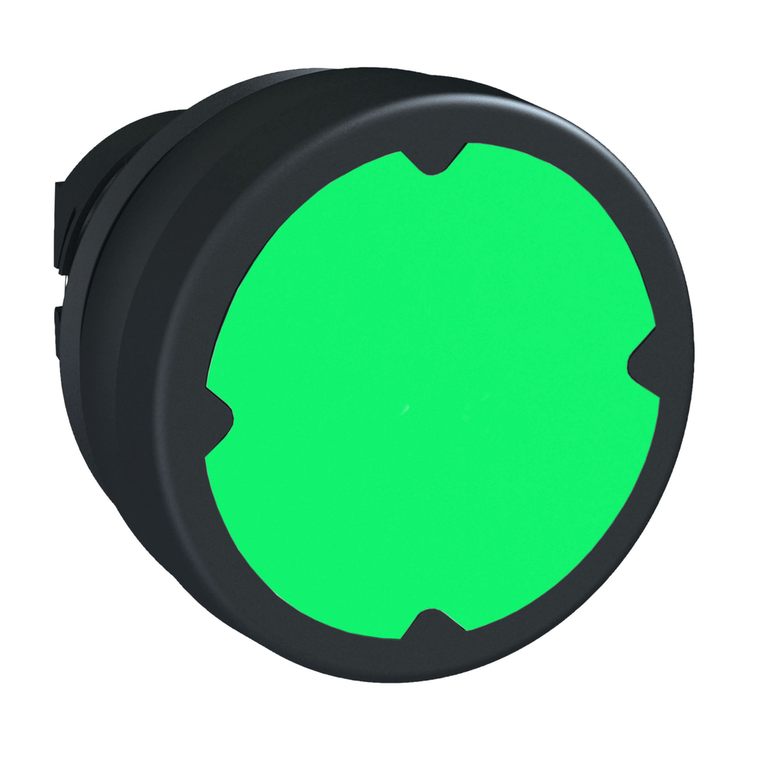

This Harmony XB5, flush green button head operates with a spring return / impulse mechanism, is used in harsh environment. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Short Name:
- ZB5
- Resistance To High Pressure Washer:
- 90 Pa 82.5 °C
- Reach Free Of Svhc:
- Yes
- Range Of Product:
- Harmony XB5
- Cad Overall Width:
- 37 mm
- Product Certifications:
- UL || CSA || CE
- Environmental Disclosure:
- ENVPEP1710010EN
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- black plastic
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Device Presentation:
- basic element
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Ik Degree Of Protection:
- IK03 IEC 62262
- Mounting Diameter:
- 22 mm
- Cad Overall Depth:
- 37 mm
- Mercury Free:
- Yes
- Cad Overall Height:
- 18.5 mm
- China Rohs Regulation:
- X
- Operator Additional Information:
- vertical mounting || horizontal mounting
- Standards:
- UL 508 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2
- Circularity Profile:
- ENVEOLI1710010EN
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69K || IP67
- Electrical Shock Protection Class:
- class II IEC 61140
- Net Weight:
- 0.024 kg
- Sustainable Offer Status:
- Green Premium product
- Operator Profile:
- green flush, unmarked
- Nema Degree Of Protection:
- NEMA 4 UL 508 || NEMA 13 || NEMA 12
- Product Or Component Type:
- head for push-button
- Ambient Air Temperature For Operation:
- -40-70 °C
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Toxic Heavy Metal Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Head Type:
- standard
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Storage:
- -40-85 °C
- Type Of Operator:
- spring return
- Mechanical Durability:
- 10000000 cycles
- Datasheet:
- View
