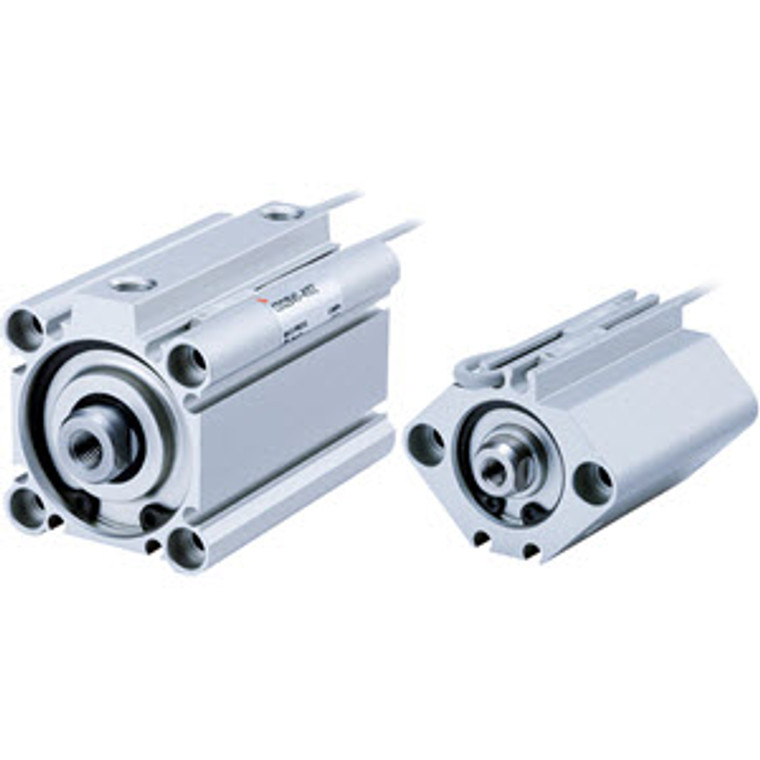

SMC CDQ2L50TN-30DZ Compact Cylinder, Cq2-Z

(No reviews yet) Write a Review
SKU:
CDQ2L50TN-30DZ
Condition:
New
$81.15

Description

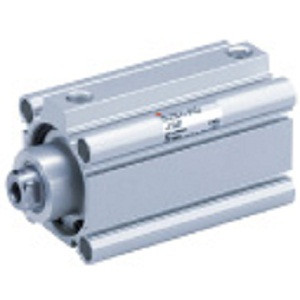

C(D)Q2-Z, Compact Cylinder, Double Acting Single Rod

Standard double acting, single rod version of the CQ2 compact cylinder. The CQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces.

- Double acting, single rod, compact cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range (mm): Rc, NPT or G (32 to 100 bore)
- Auto switch capable

Series Catalog

AutoCAD File

View AllClose

Additional Information

Option:
Rod End Female Thread
Thread Type:
NPT 32-100 Bore
Actuator Type:
Double Acting, with Auto Switch Mounting Groove
Mounting:
Foot
Bore Size:
50mm
Stroke:
30mm
Magnet:
None
Auto Switch Groove:
Auto Switch Mounting Grooves
Mounting Bolt:
None
