SMC CKG1A50-100YZ Clamp Cylinder

(No reviews yet) Write a Review
SKU:
CKG1A50-100YZ
Condition:
New
$146.95

Description

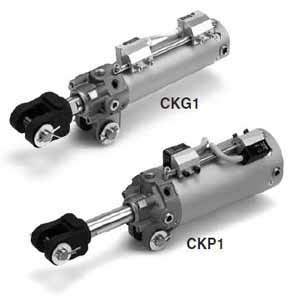

CKG1-Z/CKP1-Z, Clamp Cylinder w/Magnetic Field Resistant Auto Switch (Rod Mounting Style)

The CK1-Z series is a clamp cylinder available in two styles of clevis widths (16.5mm, 19.5mm). It is a non-lube, compact, lightweight cylinder with a built-in speed controller. The CK1-Z is available in 3 bore sizes with stroke lengths up to 150mm. Options include easy speed adjustments, rod attachments and auto switch capabilities.

- Clevis width: 16.5mm, 19.5mm
- Easy speed adjustment
- Piping ports are located on three surfaces
- Air cushion: unclamped, head on

Series Catalog

AutoCAD File

View AllClose

Additional Information

Magnet Type:
G1 (Built-in Standard Magnet w/Magnetic Field Resistant Auto Switch)
Clevis:
A (16.5mm)
Bore:
50mm
Thread:
Rc1/4
Stroke:
100mm
End Bracket:
Y (Double Knuckle Joint, M6 w/o Tap)
Option:
None
Auto Switch:
w/o Auto Switch(Built-in Magnet)
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
