SMC CKG1A50-125YAZ Clamp Cylinder
- SKU:
- CKG1A50-125YAZ
- Condition:
- New
- Availability:
- In stock: 4
Description

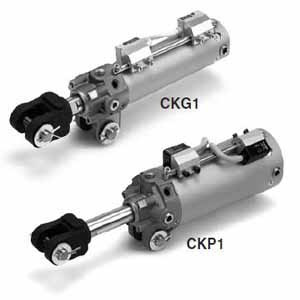

CKG1-Z/CKP1-Z, Clamp Cylinder w/Magnetic Field Resistant Auto Switch (Rod Mounting Style)
The CK1-Z series is a clamp cylinder available in two styles of clevis widths (16.5mm, 19.5mm). It is a non-lube, compact, lightweight cylinder with a built-in speed controller. The CK1-Z is available in 3 bore sizes with stroke lengths up to 150mm. Options include easy speed adjustments, rod attachments and auto switch capabilities.
- Clevis width: 16.5mm, 19.5mm- Easy speed adjustment
- Piping ports are located on three surfaces
- Air cushion: unclamped, head on
Additional Information
Number of Cores: |
2 pcs. [Or None in the Case of No Switch) |
Clevis Width: |
16.5mm |
Magnet Type: |
Built-in Standard Magnet w/Magnetic Field Resistant Auto Switch |
End Bracket: |
Double Knuckle Joint, M6 w/Tap |
Option: |
None |
Thread Type: |
Rc1/4 |
Bore Size: |
50mm |
Lead or Prewired Connector: |
0.5m [Or None in the Case of No Switch] |
Stroke: |
125mm |
Auto Switch: |
No Switch |
