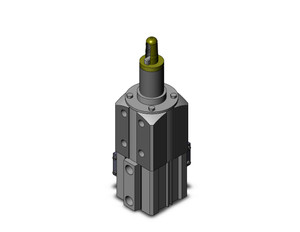

SMC CKQPKD50TF-160RAH-P74SE Pin Clamp Cylinder

(No reviews yet) Write a Review
SKU:
CKQPKD50TF-160RAH-P74SE
Condition:
New
$751.80

Description

C(L)KQP*, Pin Clamp Cylinder, Built-in Strong Magnet

SMC s pin clamp cylinder series C(L)KQG/P was designed with 4 body types for a broad range of installation conditions. There are 55 types of guide pins available and an optional locking mechanism. C(L)KQG/P series has positioning and clamping at one time! Precision adjustment of clamping height is possible by choosing the with-shim type. Adjustment range: 0.5 to 3mm.

- Pin clamp cylinder with positioning and clamping at one time
- 55 types of guide pins
- 4 body types for a broad range of installation conditions
- Optional locking mechanism
- Precision adjustment of clamping height is possible by choosing the with shim type
- Adjustment range: 0.5 to 3mm

Series Catalog

View AllClose

Additional Information

Lock:
None
Body Shape:
K (Mounting Tap= 2xM10x1.5, Pin Hole= 2x10H7)
Mounting Surface:
D (Taps Diagonal Top Left, Right and Bottom Left, Right)
Bore Size:
50mm
Port Thread:
TF (G)
Guide Pin Diameter:
160 (16.0mm)
Guide Pin Shape:
R (Round Type)
Clamp Arm Position:
A (Same Direction as Port)
Clamping Height:
H (High Type)
Shim:
None
Auto Switch:
P74--Reed, DC Volt, AC Volt, High Magnetic Field Resistant, 2 Wire
Lead Wire or Prewired Connector:
SE (0.3m Cord Length, M12-4 Pin Connector, 1 & 4 Out)
Number:
2 pcs. (Or None in the Case of No Switch)
View AllClose
