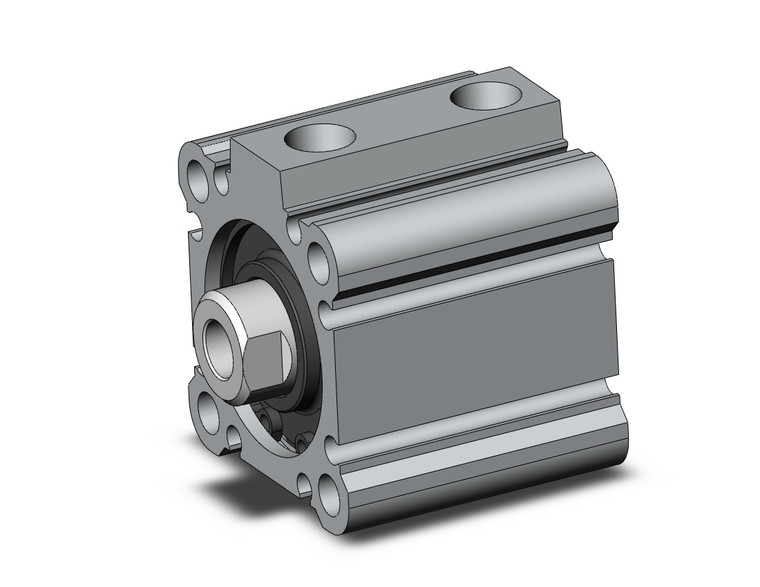

SMC CQ2A32-20DCZ Compact Cylinder

(No reviews yet) Write a Review
SKU:
CQ2A32-20DCZ
Condition:
New
$42.05

Description

C(D)Q2-Z, Compact Cylinder, Double Acting Single Rod

Standard double acting, single rod version of the CQ2 compact cylinder. The CQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces.

- Double acting, single rod, compact cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range (mm): Rc, NPT or G (32 to 100 bore)
- Auto switch capable

Series Catalog

AutoCAD File

View AllClose

Additional Information

Magnet:
None
Mounting:
A (Both Ends Tapped)
Type:
Standard
Bore Size:
32mm
Port Thread Type:
Rc= 32-100 Bore
Stroke:
20mm
Body Option:
C (Rubber Bumper)
Auto Switch Groove:
Z (Auto Switch Mounting Grooves)
Mounting Bolt:
None
Rod End Bracket:
None
Auto Switch:
No Switch
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
