SMC CRA1BW80-100CZ Actuator, Rotary, Rack & Pinion Type

(No reviews yet) Write a Review
SKU:
CRA1BW80-100CZ
Condition:
New
Availability:
In stock: 4
$376.95

Description

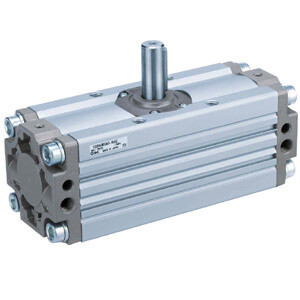

C(D)RA1-Z, Rotary Actuator, Rack & Pinion, Standard

The CRA1-Z rack and pinion actuator offers compact auto switches which can be mounted from the front with width reduction by 14mm. Bore sizes on standard model are 30, 50, 63, 80, and 100mm. The angle adjustable type, CRA1**U-Z, has been added to the line in bore sizes 50, 63, 80 and 100. Units may be ordered auto-switch capable and with replaceable cushions. Many variations of the shaft types are available.

- Compact auto switches mountable on 2 surfaces
- Auto switch can be mounted from the front
- Easy adjustment of cushion valve (not available on size 30)
- Cushion seal is replaceable

Series Catalog

View AllClose

Additional Information

Magnet:
None
Mounting:
B (Basic Type)
Shaft:
W (Double Shaft)
Type:
Pneumatic
Size:
80mm
Port:
Rc
Rotating Angle:
100???
Air Cushion:
C (w/Air Cushion)
Auto Switch:
No Switch
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
