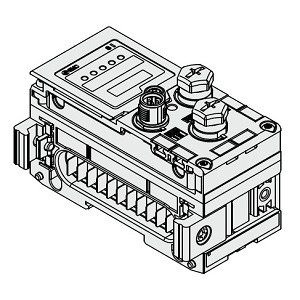

SMC EX600-SPN3 EX600 Series Fieldbus System EX600-S SI Unit

SMC EX600-SPN3 SI Unit, PROFINET, 32-Output PNP, EX600 Fieldbus, IP67

SMC
SKU:
EX600-SPN3
Availability:
Factory stock: 296
$651.50
Condition:
New
Current Stock:
Description

The SMC EX600-SPN3 is a PROFINET SI (serial interface) unit for the SMC EX600 fieldbus system. It is the communication head unit for the valve manifold, controlling up to 32 solenoid outputs (PNP) over PROFINET while reducing control wiring to a single network connection.

Key Specifications

PlatformSMC EX600 fieldbus system
ProtocolPROFINET
FunctionSI unit (fieldbus communication / valve output control)
Solenoid outputsUp to 32
Output polarityPNP (source)
PortsDual (2-port)
Compatible valvesSY, SV, VQC, S0700 (and JSY on current platforms)
Enclosure ratingIP67 (manifold assembly)
Operating temperature-10 to 50 C

Features

  • PROFINET connectivity consolidates valve manifold control onto one network node
  • Reduces wiring, terminal blocks, and PLC output cards versus discrete solenoid wiring
  • Full onboard diagnostics and programmable parameters for fast commissioning
  • IP67-rated for on-machine mounting without an enclosure
  • Dual-port design supports linear and ring (DLR) topologies without external switches

Applications

Used to network SMC EX600-compatible valve manifolds in automated assembly, packaging, material handling, and machine-tool cells that run on a PROFINET control architecture.

Automation Distribution is an authorized SMC distributor. Order the SMC EX600-SPN3 online, or contact our technical team for help selecting the right fieldbus configuration for your application.

Additional Information
Protocol:
PROFINET
Output Type:
PNP(Negative Common), (Protocol EtherNet/IP: 2 Ports
Version:
When MJ Or En Or EC Or PN Is Selected
