SMC HRS050-AN-20 Chiller

(No reviews yet) Write a Review
SKU:
HRS050-AN-20
Condition:
New
Availability:
In stock: 178
Cooling Capacity:
050 (Cooling Capacity= 4700/5100W, 50/60 Hz)
Cooling Method:
A (Air-cooled Refrigeration)
Thread:
N (NPT w/PT-NPT Conversion Fitting Set)
Option:
None
$5,600.00

Description

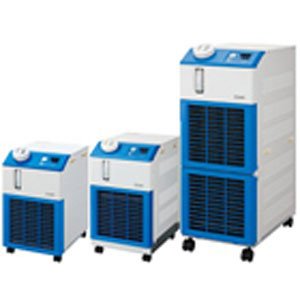

HRS, General Use Compact Chiller, 230VAC

HRS compact recirculating chillers are designed to meet the widest range of single-point applications in both industrial and technology settings. The package design is robust enough for the factory, yet ergonomic and compact for lab installations. Coolant can be either heated or cooled within the set temperature range. Choose from six cooling capacities, air or water cooled refrigerant, and global power supply options. This model is compatible with 200 VAC power.
-

- Cooling capacities: 1.3 kW, 1.9 kW, 2.4 kW, 3.2 kW, 4.2 kW, 5.1 kW, 5.9 kW (at 60Hz)
- Temperature range setting: 5 to 40 C
- Temperature stability: 0.1 C
- Power supply requirement: single phase 200 to 230 VAC, 50/60Hz
- Standards: CE, UL, RoHS
- Circulating fluid: Tap water or 15% ethylene glycol, 30% Dowcal 100, ControXic 1642, Hexid A4, Coolflow IGE, NALCO CCL105
- SMC recommends Bypass Piping Set HRS-BP001 for Models HRS-012, HRS018, HRS024, HRS030
- SMC recommends Bypass Piping Set HRS-BP004 for Models HRS-040, HRS050, HRS060
-

Series Catalog

AutoCAD File
