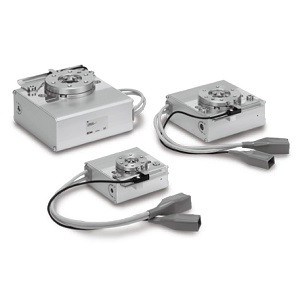

SMC LERH30K-1L-S5C917 LER Series Electric Rotary Table Step Motor (Servo 24 VDC) Continuous Rotation Specification Applicable To The JXC Series

The SMC LERH30K-1L-S5C917 LER Series Electric Rotary Table Step Motor is engineered for precision and efficiency, making it an ideal choice for engineers and manufacturing professionals seeking advanced automation solutions. This servo-driven rotary table operates on a 24 VDC power supply and is specifically designed for continuous rotation applications compatible with the JXC Series controllers. Key technical specifications include a versatile rotation angle of 320° (310° for LER10), 180°, and 90°, allowing for flexible integration into various systems. The low-profile design, with a height of just 42 mm for the LER10, ensures space-saving installation without compromising performance. The built-in step motor facilitates shock-less and high-speed actuation, achieving a maximum speed of 420°/sec (7.33 rad/sec) and a maximum acceleration/deceleration of 3,000°/sec² (52.36 rad/sec²). Engineers will appreciate the ability to set speed, acceleration/deceleration, and position with up to 64 programmable points, enhancing operational precision. The energy-saving feature automatically reduces power consumption by 40% once the table has stopped, promoting sustainable operation. Simplified setup is achieved with data configuration requiring only position and speed inputs, as the controller comes pre-configured with actuator data. Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and legacy models like LECP6 and LECPMJ, this rotary table offers seamless integration into existing systems. Optimize your manufacturing processes with the SMC LERH30K-1L-S5C917, a robust solution for precise and efficient automation.
