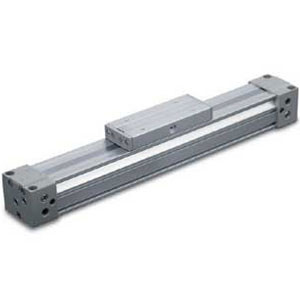

SMC MY1B25-600Z Rodless Cylinder

(No reviews yet) Write a Review
SKU:
MY1B25-600Z
Condition:
New
Availability:
In stock: 3
$288.45

Description

Rodless Cylinder, MY1B-*Z, Mechanically Jointed w/o Stroke Adjuster - Basic Type

The MY1B-S*Z Rodless Cylinders have a one-piece carriage and piston that runs its entire stroke length housed with an inner seal belt to maintain air pressure with an enhanced magnetic dust seal band to protect from contaminants. This design offers a compact footprint compared to rod-style cylinders and features a low profile. Air cushions are standard adjustable with an easy access cushion needle. Auto-switch mounting has been enhanced with a face mounting feature.

- Bore sizes: 25, 32, 40 mm
- Stroke lengths: 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1600, 1800, 2000, 3000, 4000, 5000 mm
- Minimum operating pressure: 0.10 MPa (15 psi)
- Speed: 100~1000 mm/sec (air cushion), 100~1500 mm/sec (external shock absorber)
- Long stroke option: up to 5000 mm (XB11)
- RoHS compliant
- Auto switch capable
-

Series Catalog

AutoCAD File

View AllClose

Additional Information

Bore:
25mm
Port Thread:
Rc
Piping:
Standard
Stroke:
600mm
Stroke Adjustment Unit:
Left= w/o Unit
Right:
w/o Unit
Auto Switch:
No Switch
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
