WAGO 2000-5317/102-000

(No reviews yet) Write a Review
SKU:
2000-5317/102-000
Condition:
New
  • Wago 2000-5317/102-000
  • Wago 2000-5317/102-000
  • Wago 2000-5317/102-000
$17.45

Description

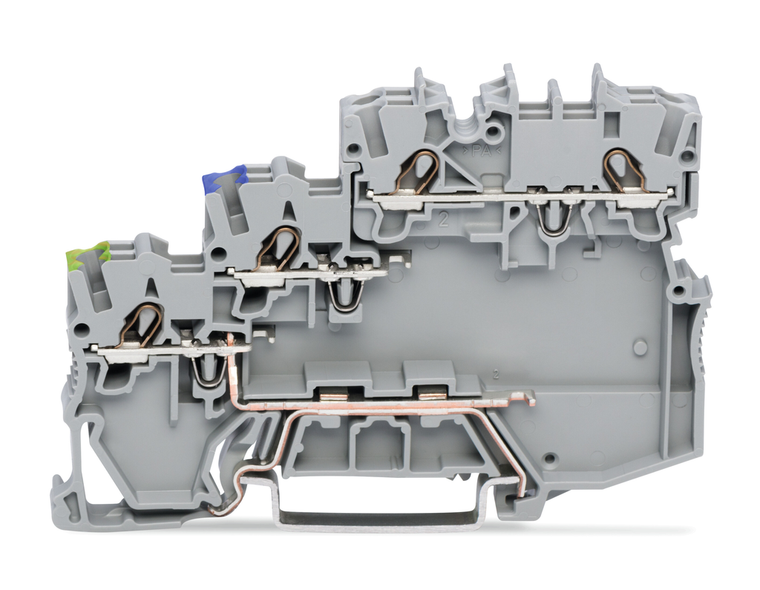

Actuator terminal block; for PNP (high side) switching actuators; with ground contact; 2-pole; rail mount; 3-conductor; 7 mm wide; gray
View AllClose

Additional Information

actuation type:
Push-in || Operating tool
approvals per:
C22.2 No 158
color:
Gray
connectable conductor materials:
Copper
connection technology:
Push-in CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
52.4 mm / 2.063 inch
design:
Horizontal type
fine stranded conductor:
0.14 1.5 mm / 24 16 AWG
fine stranded conductor with ferrule push in termination:
0.5 0.75 mm / 20 18 AWG
fine stranded conductor with insulated ferrule:
0.14 0.75 mm / 24 18 AWG
fire load:
0.317 MJ
flammability class per ul94:
V0
height:
81.1 mm / 3.193 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Center/side marking
mounting type:
DIN-35 rail
nominal cross section:
1 mm
nominal voltage iii 3:
250 V
note conductor cross section:
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
packaging type:
Box
rated current:
13.5 A
rated current csa use group c:
0.416666666666667
rated current ul use group b:
15 A
rated current ul use group d:
15 A
rated surge voltage iii 3:
4 kV
rated voltage csa use group c:
300 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60947-7-1
solid conductor:
0.14 1.5 mm / 24 16 AWG
solid conductor push in termination:
0.5 1.5 mm / 20 16 AWG
strip length:
9 11 mm / 0.35 0.43 inch
weight:
17.396 g
width:
7 mm / 0.276 inch
wiring direction:
Front-entry wiring
