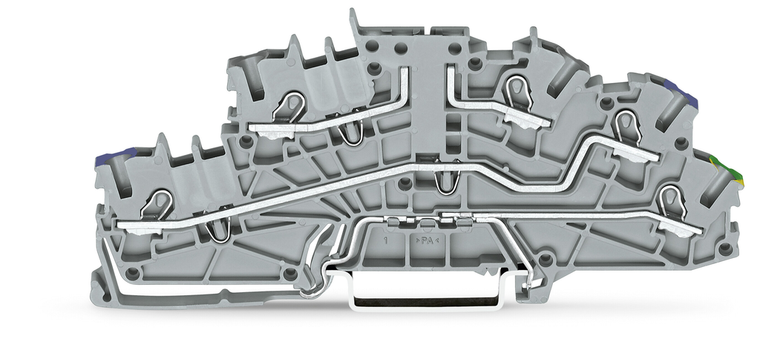

WAGO 2003-6661

(No reviews yet) Write a Review
SKU:
2003-6661
Condition:
New
  • Wago 2003-6661
  • Wago 2003-6661
$8.47

Description

Multilevel installation tb4 mm Carrier terminal block without knife, gray

Electrical Data
  • Ratings note: potential - ground
  • Rated voltage (III / 3): 250 V
  • Rated impulse voltage (III / 3): 4 kV
  • Rated current: 10 A
  • Ratings note 2: potential-potential
  • Rated voltage (III / 3) 2: 400 V
  • Rated impulse voltage (III / 3) 2: 6 kV
  • Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
  • Connection technology: Push-in CAGE CLAMP<sup></sup>
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross section: 2.5 mm
  • Solid conductor: 0.25 4 mm / 22 12 AWG
  • Solid conductor, push-in termination: 0.75 4 mm / 18 12 AWG
  • Fine-stranded conductor: 0.25 4 mm / 22 12 AWG
  • Fine-stranded conductor with ferrule with plastic collar: 1 2.5 mm / 18 12 AWG
  • Fine-stranded conductor with ferrule, push-in termination, from: 1 2.5 mm / 18 12 AWG
  • Strip length: 10 12 mm / 0.39 0.47 inch
  • Total number of connection points: 5
  • Total number of potentials: 3
  • Number of levels: 3
  • Type of wiring: Front-entry wiring
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
Geometrical Data
  • Width: 5.2 mm / 0.205 inch
  • Height from upper-edge of DIN-35 rail: 44.3 mm / 1.744 inch
  • Depth: 110 mm / 4.331 inch
Mechanical Data
  • Design: Angled
  • Type of mounting: DIN-35 rail
  • Potential marking: L/N/PE
  • Marking level: Center/side marking
Material Data
  • Color: gray
  • Insulating material: Polyamide 66 (PA 66)
  • Fire load: 0.000 MJ
  • Weight: 19.942 g
Commercial data
  • Packaging type: BOX
  • Country of origin: CN
  • GTIN: 4055143665483
  • Customs Tariff No.: 85369010000
View AllClose

Additional Information

actuation type:
Push-in || Operating tool
approvals per:
C22.2 No 158
color:
Gray
connectable conductor materials:
Copper
connection technology:
Push-in CAGE CLAMP
country of origin sales organisation germany:
CN
depth from upper edge of din rail:
45.2 mm / 1.78 inch
design:
Angled
fine stranded conductor:
0.25 4 mm / 22 12 AWG
fine stranded conductor with ferrule push in termination:
1 2.5 mm / 18 14 AWG
fine stranded conductor with insulated ferrule:
0.25 2.5 mm / 22 14 AWG
fire load:
0.309 MJ
flammability class per ul94:
V0
height:
110 mm / 4.331 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Center/side marking
mounting type:
DIN-35 rail
nominal cross section:
2.5 mm
nominal voltage iii 3:
250 V
note conductor cross section:
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
note on rated current 1:
Maximum current depends on accessories used.
packaging type:
Box
rated current:
20 A
rated current 2:
25 A
rated current csa use group b:
20 A
rated current csa use group d:
15 A
rated current ul use group b:
6.3 A
rated current ul use group c:
6.3 A
rated current ul use group d:
6.3 A
rated surge voltage iii 3:
4 kV
rated surge voltage iii 3 2:
6 kV
rated voltage csa use group b:
300 V
rated voltage csa use group d:
150 V
rated voltage iii 3 2:
400 V
rated voltage ul use group b:
250 V
rated voltage ul use group c:
150 V
rated voltage ul use group d:
250 V
ratings note:
Potential ground
ratings note 2:
Potential potential
solid conductor:
0.25 4 mm / 22 12 AWG
solid conductor push in termination:
0.75 4 mm / 18 12 AWG
strip length:
10 12 mm / 0.39 0.47 inch
weight:
19.942 g
width:
5.2 mm / 0.205 inch
wiring direction:
Front-entry wiring
