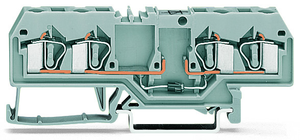

WAGO 2004-1311/1000-401

(No reviews yet) Write a Review

Write a Review

×

WAGO 2004-1311/1000-401

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

2004-1311/1000-401

Condition:

New

Availability:

In our warehouse: 12

actuation type:

Push-in || Operating tool

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

32.9 mm / 1.295 inch

design:

Horizontal type

fine stranded conductor:

0.5 6 mm / 20 10 AWG

fine stranded conductor with ferrule push in termination:

1.5 4 mm / 18 12 AWG

fine stranded conductor with insulated ferrule:

0.5 4 mm / 20 12 AWG

fire load:

0.157 MJ

flammability class per ul94:

V0

height:

65.5 mm / 2.579 inch

insulation material:

Polyamide (PA66)

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

4 mm

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

1.5 A

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.5 6 mm / 20 10 AWG

solid conductor push in termination:

1.5 6 mm / 14 10 AWG

strip length:

11 13 mm / 0.43 0.51 inch

weight:

9.670 g

width:

6.2 mm / 0.244 inch

wiring direction:

Front-entry wiring
