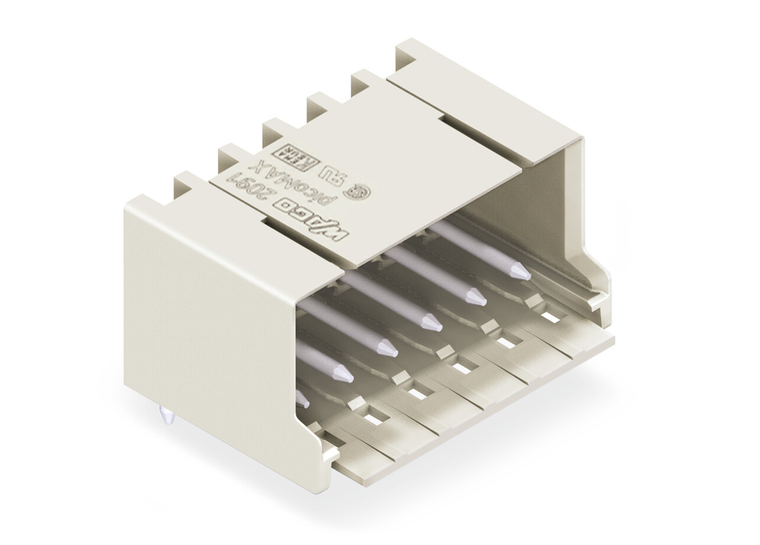

WAGO 2091-1423/200-000/997-406 Pack of 170
- SKU:
- 2091-1423/200-000/997-406
- Condition:
- New
Additional Information
approvals per: |
UL 1059 |
color: |
Light gray |
connector connection type: |
For PCB |
contact material: |
Electrolytic copper (ECu) |
contact plating: |
Tin-plated |
contact type pluggable connector: |
Male connector/plug |
country of origin sales organisation germany: |
DE |
depth: |
17.5 mm / 0.689 inch |
fire load: |
0.000 MJ |
flammability class per ul94: |
V0 |
height: |
14.8 mm / 0.583 inch |
height from the surface: |
12.4 mm / 0.488 inch |
insulation material: |
Polyphthalamide (PPA GF) |
legend ratings: |
(III / 2) Overvoltage category III / Pollution degree 2 |
limit temperature range: |
-60 +100 C |
locking of plug in connection: |
Locking latch |
material group: |
I |
mating direction to the pcb: |
0 |
mismating protection: |
No |
nominal voltage ii 2: |
320 V |
nominal voltage iii 3: |
160 V |
packaging type: |
Bag |
pcb contact: |
THR |
pin spacing: |
3.5 mm / 0.138 inch |
plated through hole diameter thr: |
1.2 (+0.1) mm |
pole no: |
3 |
rated current: |
0.416666666666667 |
rated current ul use group b: |
0.416666666666667 |
rated current ul use group d: |
0.416666666666667 |
rated surge voltage ii 2: |
2.5 kV |
rated surge voltage iii 2: |
2.5 kV |
rated surge voltage iii 3: |
2.5 kV |
rated voltage iii 2: |
160 V |
rated voltage ul use group b: |
300 V |
rated voltage ul use group d: |
300 V |
ratings per: |
IEC/EN 60664-1 |
reel diameter of tape and reel packaging: |
330 mm |
safety information 1: |
The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en |
solder pin diameter: |
1 mm |
solder pin length: |
2.4 mm |
weight: |
1.250 g |
width: |
12.5 mm / 0.492 inch |
