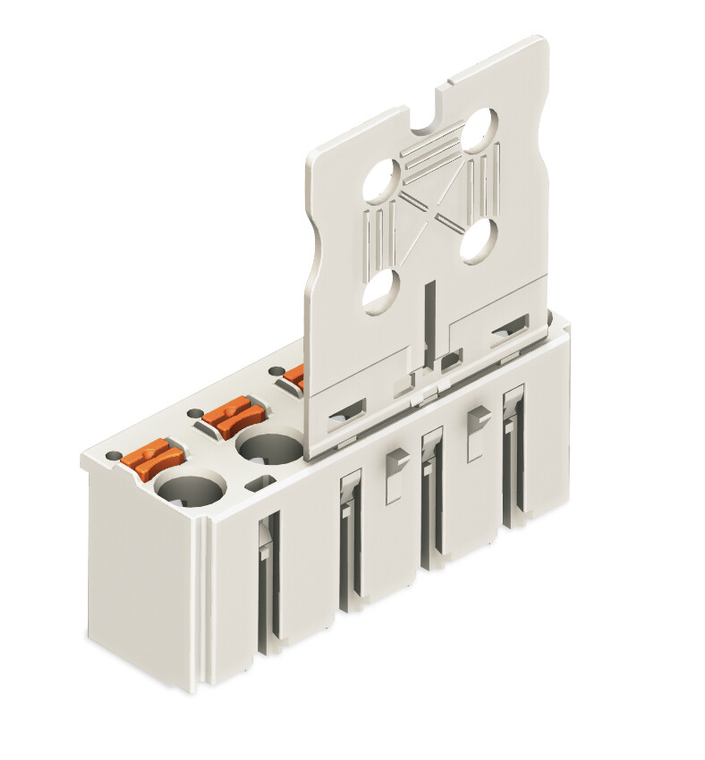

WAGO 2092-3102
- SKU:
- 2092-3102
- Condition:
- New
Description
1-conductor female connector; push-button; Push-in CAGE CLAMP; 2.5 mm²; Pin spacing 7.5 mm; 2-pole; Gripping plate; 2,50 mm²; light gray
View AllClose
Additional Information
actuation type: |
Push-button |
approvals per: |
UL 1059 |
clamping spring material: |
Chrome nickel spring steel (CrNi) |
color: |
Light gray |
connection technology: |
Push-in CAGE CLAMP |
connector connection type: |
For conductor |
contact material: |
Electrolytic copper (ECu) |
contact plating: |
Tin-plated |
contact type pluggable connector: |
Female connector/socket |
country of origin sales organisation germany: |
DE |
depth: |
13.4 mm / 0.528 inch |
design: |
With gripping plate |
fine stranded conductor: |
0.2 2.5 mm / 24 12 AWG |
fine stranded conductor with insulated ferrule: |
0.25 1.5 mm |
fine stranded conductor with uninsulated ferrule: |
0.25 2.5 mm |
fire load: |
0.009 MJ |
flammability class per ul94: |
V0 |
height: |
34 mm / 1.339 inch |
insulation material: |
Polyphthalamide (PPA GF) |
legend ratings: |
(III / 2) Overvoltage category III / Pollution degree 2 |
limit temperature range: |
-60 +100 C |
locking of plug in connection: |
Without |
material group: |
I |
mismating protection: |
No |
nominal voltage ii 2: |
1000 V |
nominal voltage iii 3: |
400 V |
packaging type: |
Box |
pin spacing: |
7.5 mm / 0.295 inch |
pole no: |
2 |
rated current: |
16 A |
rated current ul use group b: |
15 A |
rated current ul use group d: |
0.416666666666667 |
rated surge voltage ii 2: |
6 kV |
rated surge voltage iii 2: |
6 kV |
rated surge voltage iii 3: |
6 kV |
rated voltage iii 2: |
630 V |
rated voltage ul use group b: |
300 V |
rated voltage ul use group d: |
300 V |
ratings per: |
IEC/EN 60664-1 |
safety information 1: |
The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en |
solid conductor: |
0.2 2.5 mm / 24 12 AWG |
strip length: |
9 10 mm / 0.35 0.39 inch |
weight: |
2.390 g |
width: |
12.5 mm / 0.492 inch |
