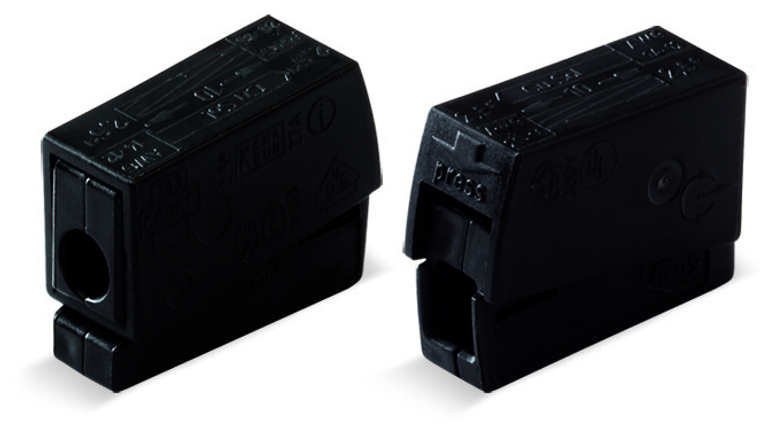

WAGO 224-104 Pack of 100

(No reviews yet) Write a Review
SKU:
224-104
Condition:
New
$36.40

Description

  • Automatically destroys the oxide film during clamping.
  • Prevents fresh oxidation at the clamping point.
  • Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
  • Provides long-term protection against corrosion.
View AllClose

Additional Information

actuation type:
Push-in
connectable conductor materials note:
Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
color:
Black
connectable conductor materials:
Copper || Aluminum
connection technology:
PUSH WIRE
connection technology 2:
CAGE CLAMP
connection type 1:
Installation side
connection type 2:
Lighting side
continuous operating temperature:
120 C
country of origin sales organisation germany:
CH
depth:
20.4 mm / 0.803 inch
fine stranded conductor 2:
0.5 2.5 mm / 20 16 AWG
fire load:
0.046 MJ
height:
15.5 mm / 0.61 inch
legend ratings:
(II / 2) Overvoltage category II / Pollution degree 2
nominal voltage ii 2:
400 V
number of connection points:
1
number of connection points 2:
1
packaging type:
Box
rated current:
24 A
rated surge voltage ii 2:
4 kV
ratings per:
EN 60664
safety information 1:
In grounded power lines
solid conductor:
1 2.5 mm / 14 12 AWG
solid conductor 2:
0.5 2.5 mm / 20 16 AWG
strip length:
9 11 mm / 0.35 0.43 inch
surrounding air temperature operation:
75 C
weight:
2.200 g
width:
8 mm / 0.315 inch
wiring direction:
Side-entry wiring
