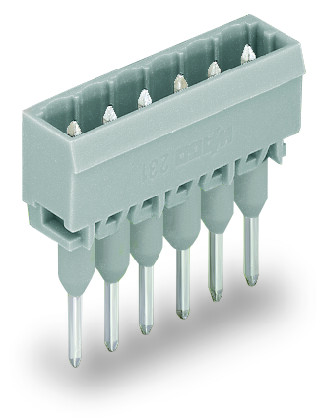

WAGO 231-176/003-000
- SKU:
- 231-176/003-000
- Condition:
- New
Description
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 16-pole
View AllClose
Additional Information
approvals per: |
CSA |
color: |
Gray |
connector connection type: |
For front-entry rail-mount terminal block |
contact material: |
Electrolytic copper (ECu) |
contact plating: |
Tin-plated |
contact type pluggable connector: |
Male connector/plug |
country of origin sales organisation germany: |
PL |
depth: |
8.4 mm / 0.331 inch |
fire load: |
0.123 MJ |
flammability class per ul94: |
V0 |
height: |
25.9 mm / 1.02 inch |
height from the surface: |
12 mm / 0.472 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 2) Overvoltage category III / Pollution degree 2 |
limit temperature range: |
-60 +100 C |
locking of plug in connection: |
Without |
material group: |
I |
mismating protection: |
No |
nominal voltage ii 2: |
630 V |
nominal voltage iii 3: |
250 V |
packaging type: |
Box |
pin spacing: |
5 mm / 0.197 inch |
pole no: |
16 |
rated current: |
16 A |
rated current csa use group b: |
15 A |
rated current csa use group d: |
0.416666666666667 |
rated current ul 1977: |
15 A |
rated current ul use group b: |
15 A |
rated current ul use group d: |
0.416666666666667 |
rated surge voltage ii 2: |
4 kV |
rated surge voltage iii 2: |
4 kV |
rated surge voltage iii 3: |
4 kV |
rated voltage csa use group b: |
300 V |
rated voltage csa use group d: |
300 V |
rated voltage iii 2: |
320 V |
rated voltage ul 1977: |
600 V |
rated voltage ul use group b: |
300 V |
rated voltage ul use group d: |
300 V |
ratings per: |
IEC/EN 60664-1 |
safety information 1: |
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure |
weight: |
9.194 g |
width: |
83.2 mm / 3.276 inch |
