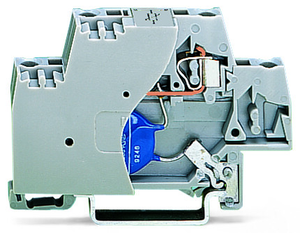

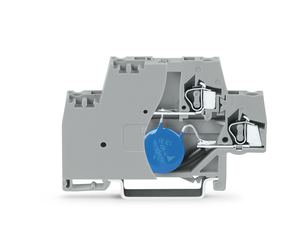

WAGO 280-504/281-585
- SKU:
- 280-504/281-585
- Condition:
- New
- capacitance:
- 800 pF
- color:
- Gray
- connection points number:
- 4
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 64 mm / 2.52 inch
- design:
- With end plate
- discharge current max:
- 4.5 kA
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 1.338 MJ
- flammability class per ul94:
- V0
- height from upper edge of din rail:
- 39.5 mm / 1.555 inch
- insulation material:
- Polyamide (PA66)
- mounting type:
- DIN-35 rail
- nominal discharge current 8 20 s line:
- 1 kA
- packaging type:
- Box
- protection level 8 20 s:
- ¤ DC 300 V
- rated continuous current:
- 20 A
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 15.145 g
- width:
- 10 mm / 0.394 inch
