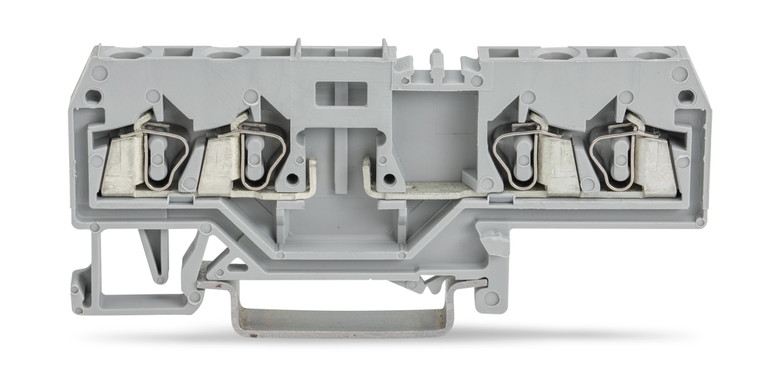

WAGO 280-686

(No reviews yet) Write a Review
SKU:
280-686
Condition:
New
  • Wago 280-686
  • Wago 280-686
$5.41

Description

4-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray
View AllClose

Additional Information

actuation type:
Operating tool
connectable conductor materials note:
Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
color:
Gray
connectable conductor materials:
Copper || Aluminum
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
28 mm / 1.102 inch
design:
Horizontal type
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fire load:
0.149 MJ
flammability class per ul94:
V0
height:
75 mm / 2.953 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Center marking
mounting type:
DIN-35 rail
nominal voltage iii 3:
400 V
note conductor cross section:
12 AWG: THHN, THWN
packaging type:
Box
rated current:
0.416666666666667
rated surge voltage iii 3:
6 kV
ratings per:
IEC/EN 60947-7-1
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
9.102 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
