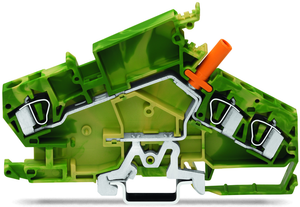

WAGO 282-866
- SKU:
- 282-866
- Condition:
- New
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 74 mm / 2.913 inch
- design:
- Angled
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.613 MJ
- flammability class per ul94:
- V0
- height:
- 122 mm / 4.803 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 30 A
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 36.415 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Front-entry wiring
Description
Screw-type through terminal block; 6 mm®; with touch-proof test socket; e.g., voltage transformer circuits; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMPp>
View AllClose
Electrical Data
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 30 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.2 6 mm / 24 10 AWG
- Fine-stranded conductor: 0.2 6 mm / 24 10 AWG
- Strip length: 12 13 mm / 0.47 0.51 inch
- Total number of connection points: 3
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 8 mm / 0.315 inch
- Height from upper-edge of DIN-35 rail: 74 mm / 2.913 inch
- Depth: 122 mm / 4.803 inch
Mechanical Data
- Design: Angled
- Type of mounting: DIN-35 rail
- Marking level: Center marking
Material Data
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.613 MJ
- Weight: 36.415 g
Commercial data
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4044918454179
- Customs Tariff No.: 85369010000
