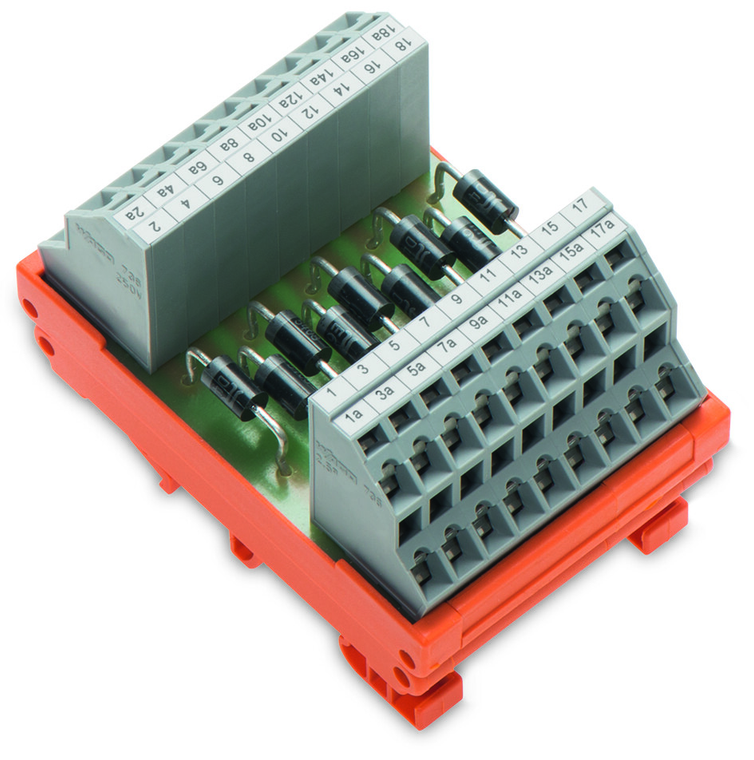

WAGO 289-105

(No reviews yet) Write a Review

Write a Review

×

WAGO 289-105

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

289-105

Condition:

New

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth:

52 mm / 2.047 inch

depth from upper edge of din rail:

48 mm / 1.89 inch

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.534 MJ

forward current per diode resistive:

0.125

forward voltage per diode:

1.3 V

height:

85 mm / 3.346 inch

height from upper edge of din rail:

82.5 mm / 3.25 inch

housing design:

Mounting carrier

leakage current:

10 A

mounting type:

DIN-35 rail

note:

Max. admissible current per the manufacters data sheet. With all diodes loaded, the continuous current must be reduced.

note conductor cross section:

12 AWG: THHN, THWN

note on protection type:

Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see Accessories) or a similar cover. The installation guidelines must be observ

operating voltage:

¤ AC/DC 250 V

packaging type:

Box

peak reverse voltage:

1000 V

pollution degree:

2

protection type:

IP00*

rated surge voltage:

4 kV

rated voltage:

250 V

rectified current for each diode resistive:

0.125

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

5 6 mm / 0.2 0.24 inch

surrounding air temperature operation:

-25 40 C

wago connector:

WAGO 736 Series

weight:

80.640 g

width:

51 mm / 2.008 inch
