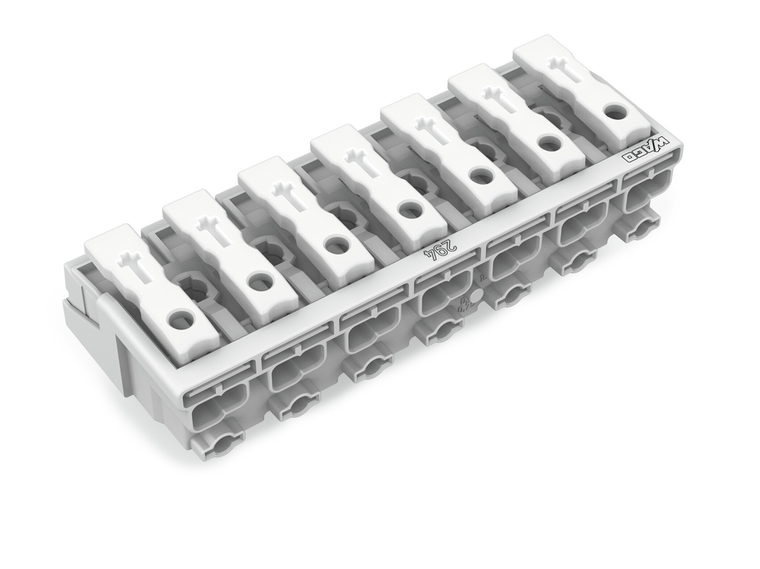

WAGO 294-4007
- SKU:
- 294-4007
- Condition:
- New
Description
Lighting connector; push-button, external; without ground contact; 7-pole; Lighting side: for solid conductors; Inst. side: for all conductor types; max. 2.5 mm²; Surrounding air temperature: max 85°C (T85); 2,50 mm²; white
View AllClose
Additional Information
actuation type: |
Operating tool || Push-button |
clamping spring material: |
Chrome nickel spring steel (CrNi) |
color: |
White |
connectable conductor materials: |
Copper |
connection technology: |
Push-in CAGE CLAMP |
connection technology 2: |
PUSH WIRE |
connection type 1: |
External 1 |
connection type 2: |
Internal 2 |
connection type 3: |
Internal 3 |
connection type 4: |
Internal 4 |
contact material: |
Electrolytic copper (ECu) |
contact plating: |
Tin-plated |
country of origin sales organisation germany: |
CH |
depth: |
27.3 mm / 1.075 inch |
fine stranded conductor: |
0.5 2.5 mm / 18 14 AWG |
fine stranded conductor with ferrule push in termination: |
0.5 mm / 18 AWG |
fine stranded conductor with insulated ferrule: |
0.5 1.5 mm / 18 16 AWG |
fine stranded conductor with insulated ferrule 2: |
0.5 1 mm / 18 16 AWG |
fine stranded conductor with insulated ferrule 3: |
0.5 0.75 mm / 18 AWG |
fine stranded conductor with uninsulated ferrule: |
0.5 1.5 mm / 18 16 AWG |
fine stranded conductor with uninsulated ferrule 2: |
0.5 1.5 mm / 18 14 AWG |
fine stranded conductor with uninsulated ferrule 3: |
0.5 1 mm / 18 AWG |
fire load: |
0.417 MJ |
flammability class per ul94: |
V0 |
height from the surface: |
17 mm / 0.669 inch |
insulation material: |
Polycarbonate (PC) |
legend ratings: |
(II / 2) Overvoltage category II / Pollution degree 2 |
marking: |
Plain |
material group: |
IIIa |
mounting type: |
Without snap-in mounting feet |
nominal voltage ii 2: |
500 V |
number of connection points: |
2 |
number of connection points 2: |
1 |
number of connection points 3: |
1 |
number of connection points 4: |
1 |
packaging type: |
Lamination |
pin spacing: |
10 mm / 0.394 inch |
pole no: |
7 |
rated current: |
24 A |
rated current 2: |
24 A |
rated current 3: |
16 A |
rated surge voltage ii 2: |
4 kV |
rated surge voltage ii 2 2: |
4 kV |
rated voltage ii 2 2: |
500 V |
ratings note: |
Connection points |
ratings note 2: |
Connection points |
ratings per: |
IEC/EN 60998-1 || IEC/EN 60998-2-2 |
solid conductor: |
0.5 2.5 mm / 18 12 AWG |
solid conductor 2: |
0.5 2.5 mm / 18 14 AWG |
solid conductor 3: |
0.5 1.5 mm / 18 16 AWG |
solid conductor 4: |
0.5 0.75 mm / 18 AWG |
solid conductor push in termination: |
0.5 2.5 mm / 18 12 AWG |
stranded conductor: |
0.5 2.5 mm / 18 14 AWG |
strip length: |
8 9 mm / 0.31 0.35 inch |
strip length 2: |
8 9 mm / 0.31 0.35 inch |
t marking: |
T85 |
temperature stability: |
120 C |
weight: |
21.164 g |
width: |
70 mm / 2.756 inch |
wiring direction: |
Side-entry wiring |
