WAGO 713-1109/037-000
- SKU:
- 713-1109/037-000
- Condition:
- New
Description

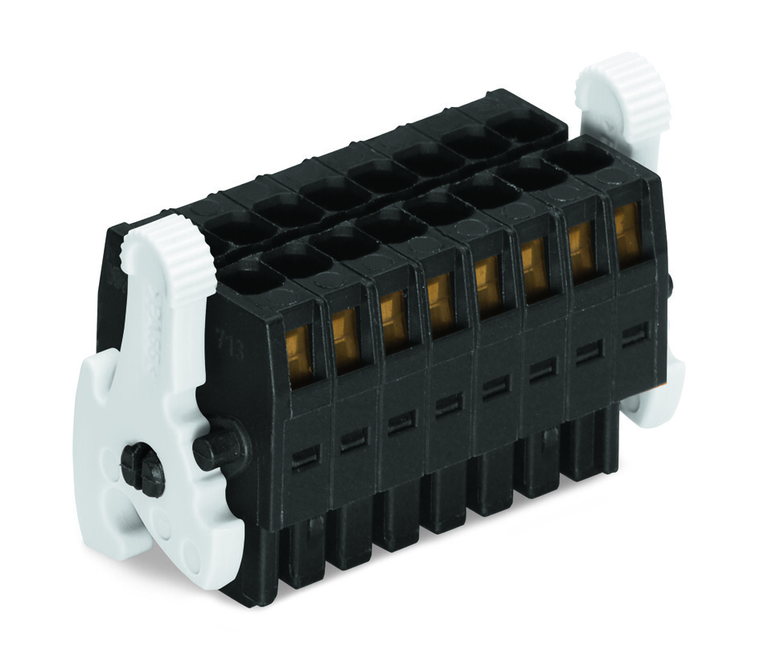

1-conductor female connector, 2-row; CAGE CLAMP; 1.5 mm²; Pin spacing 3.5 mm; 18-pole; 100% protected against mismating; Levers; 1,50 mm²; black
View AllClose
Additional Information
actuation type: |
Operating tool |
approvals per: |
CSA |
clamping spring material: |
Chrome nickel spring steel (CrNi) |
color: |
Black |
conductor entry direction to mating direction: |
0 |
connection technology: |
CAGE CLAMP |
connector connection type: |
For conductor |
contact material: |
Copper alloy |
contact plating: |
Tin-plated |
contact type pluggable connector: |
Female connector/socket |
country of origin sales organisation germany: |
PL |
depth: |
16 mm / 0.63 inch |
fine stranded conductor: |
0.08 1.5 mm / 28 16 AWG |
fine stranded conductor with insulated ferrule: |
0.25 1 mm |
fine stranded conductor with uninsulated ferrule: |
0.25 1 mm |
fire load: |
0.166 MJ |
flammability class per ul94: |
V0 |
height: |
18.8 mm / 0.74 inch |
insulation material: |
Glass fiber-reinforced polyamide (PA66 GF) |
legend ratings: |
(III / 2) Overvoltage category III / Pollution degree 2 |
limit temperature range: |
-60 +100 C |
locking of plug in connection: |
Locking lever |
material group: |
II |
mismating protection: |
Yes |
nominal voltage ii 2: |
250 V |
nominal voltage iii 3: |
80 V |
packaging type: |
Box |
pin spacing: |
3.5 mm / 0.138 inch |
pole no: |
18 |
rated current: |
0.416666666666667 |
rated current csa use group b: |
0.416666666666667 |
rated current ul use group b: |
0.416666666666667 |
rated current ul use group c: |
0.416666666666667 |
rated surge voltage ii 2: |
2.5 kV |
rated surge voltage iii 2: |
2.5 kV |
rated surge voltage iii 3: |
2.5 kV |
rated voltage csa use group b: |
300 V |
rated voltage iii 2: |
160 V |
rated voltage ul use group b: |
300 V |
rated voltage ul use group c: |
50 V |
ratings per: |
IEC/EN 60664-1 |
safety information 1: |
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure |
solid conductor: |
0.08 1.5 mm / 28 16 AWG |
strip length: |
6 7 mm / 0.24 0.28 inch |
weight: |
10.200 g |
width: |
40 mm / 1.575 inch |
