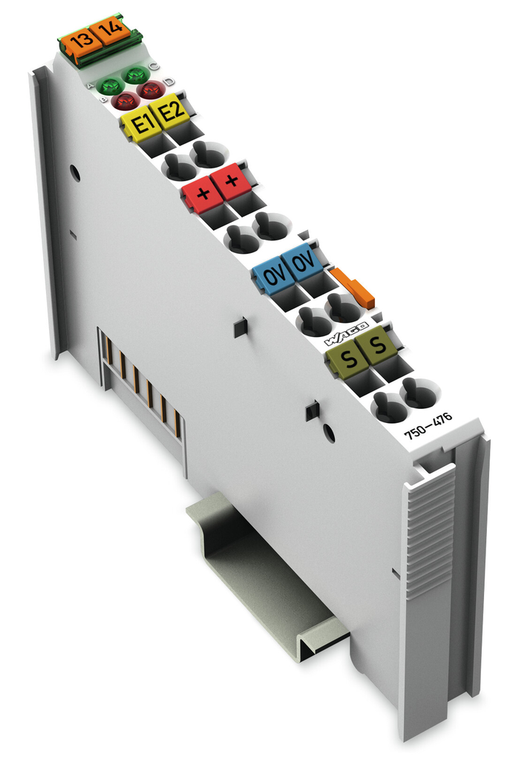

WAGO 750-476

(No reviews yet) Write a Review
SKU:
750-476
Condition:
New
  • Wago 750-476
  • Wago 750-476
  • Wago 750-476
$393.30

Description

2-channel analog input; 10 VDC; Single-ended; 16 bits
View AllClose

Additional Information

color:
Light gray
conformity marking:
CE
connection technology inputs outputs:
8 x CAGE CLAMP
connection type 1:
Inputs/outputs
conversion time typ:
80 ms
country of origin sales organisation germany:
DE
data width:
2 x 16-bit data: 2 x 8-bit control/status (optional)
depth:
69.8 mm / 2.748 inch
depth from upper edge of din rail:
62.6 mm / 2.465 inch
emc emission of interference:
Per EN 61000-6-4, marine applications
emc immunity to interference:
Per EN 61000-6-2, marine applications
exposure to pollutants:
Per IEC 60068-2-42 and IEC 60068-2-43
fine stranded conductor:
0.08 2.5 mm / 28 14 AWG
fire load:
0.920 MJ
height:
100 mm / 3.937 inch
housing material:
Polycarbonate: polyamide 6.6
input filter frequency analog:
50 Hz
input voltage max:
24 V
internal resistance:
130 k
isolation:
500 V system/field
measurement error deviation max from the upper range value:
0.001
measurement error reference temperature:
25 C
mounting position:
Horizontal (standing/lying): vertical
mounting type:
DIN-35 rail
noise rejection above sampling frequency:
-40 dB
noise rejection at sampling frequency:
-100 dB
number of analog inputs:
2
number of incoming power jumper contacts:
2
number of outgoing power jumper contacts:
2
operating altitude:
0 2000 m
packaging type:
Box
permissible h2s contaminant concentration at a relative humidity 75:
10 ppm
permissible so2 contaminant concentration at a relative humidity 75:
25 ppm
pollution degree 5:
2 per IEC 61131-2
power consumption 5 v system supply:
75 mA
protection type:
IP20
relative humidity without condensation:
0.95
resolution bit:
16 bits
sensor connection:
2 x (2-wire)
shock resistance:
15g per IEC 60068-2-27
signal characteristic:
Single-ended
signal type:
Voltage
solid conductor:
0.08 2.5 mm / 28 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
supply voltage field:
24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)
supply voltage system:
5 VDC: via data contacts
surrounding air temperature operation:
0 55 C
surrounding air temperature storage:
-40 85 C
temperature error max of the upper range value:
0.01 %/K
total number of channels module:
2
vibration resistance:
4g per IEC 60068-2-6
voltage signal type:
-10 +10 VDC
weight:
51.812 g
width:
12 mm / 0.472 inch
