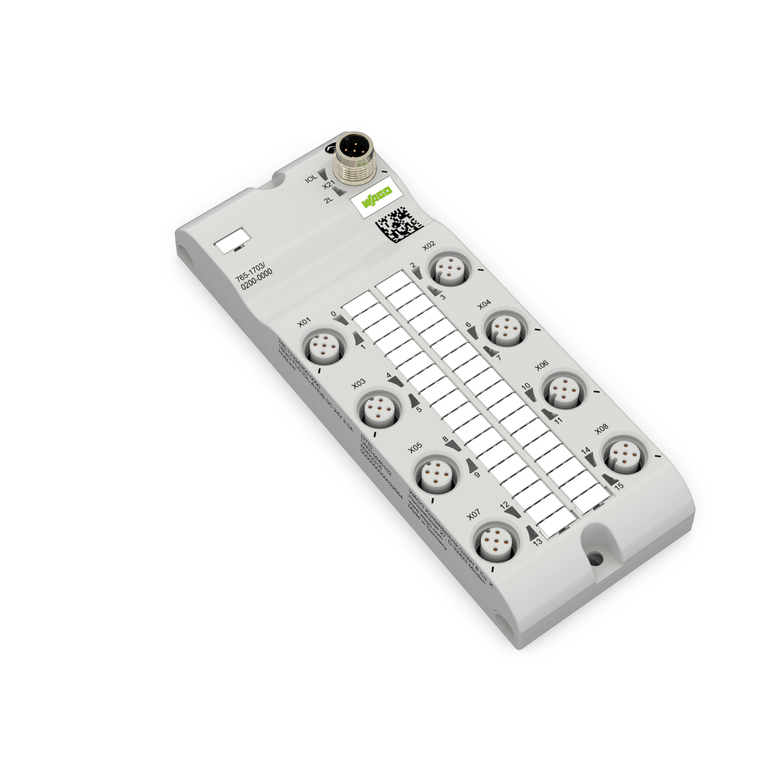

WAGO 765-1703/200-000
- SKU:
- 765-1703/200-000
- Condition:
- New
Description
16-channel digital input/output; IO Link Class A Hub; DC 24 V / 2.0 A; 8xM12 connection; HubLine
View AllClose
Additional Information
communication: |
IO-Link Class A Slave |
conformity marking: |
CE |
connection technology communication fieldbus: |
1 x A-coded M12: 5-pole |
connection technology inputs outputs: |
8 x A-coded M12: 5-pole |
connection technology supply: |
1 x A-coded M12: 5-pole: via IO-Link port (1L) |
country of origin sales organisation germany: |
DE |
depth: |
158.5 mm / 6.24 inch |
diagnostics: |
Undervoltage: overcurrent: overload: overtemperature |
emc emission of interference: |
Per EN 61000-6-4 |
emc immunity to interference: |
Per EN 61000-6-2 |
height: |
30 mm / 1.181 inch |
input characteristic: |
High-side switching || Type 3, per IEC 61131-2 |
input filter: |
0.2 20 ms |
number of digital inputs: |
16 |
number of digital outputs: |
16 |
output current per channel: |
0.0833333333333333 |
overvoltage category: |
II (EN 60664-1) |
packaging type: |
Box |
parameters: |
Input filter || Output current || Temperature |
pollution degree 5: |
3 per EN 60664-1 |
power consumption max: |
4000 mA |
power consumption note: |
1L: 0.2 A + load current |
protection class: |
III per EN 61140, IEC 61140, VDE 0140-1 |
protection type: |
IP67 |
reverse voltage protection: |
Yes |
shock resistance: |
Short-term: 50g/11 ms/half-sine per IEC 60068-2-27: Long-term: 30g/6 ms/half-sine per IEC 60068-2-29 |
supply voltage: |
24 VDC (18 31.2 V): 1L |
surrounding air temperature operation: |
-25 70 C |
surrounding air temperature storage: |
-40 80 C |
vibration resistance: |
5g per IEC 60068-2-6 |
voltage signal type: |
24 VDC |
weight: |
170.000 g |
width: |
60 mm / 2.362 inch |
