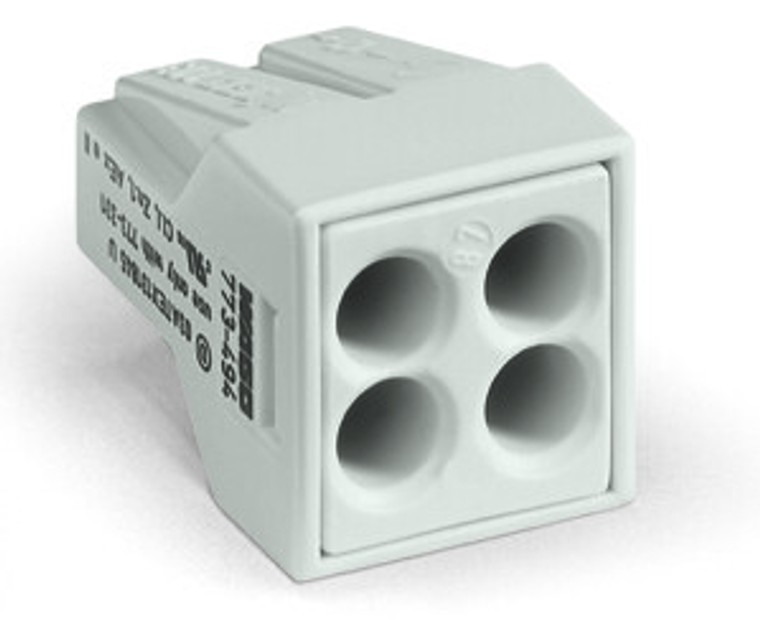

WAGO 773-494 Pack of 100

(No reviews yet) Write a Review
SKU:
773-494
Condition:
New
  • Wago 773-494 Pack of 100
  • Wago 773-494 Pack of 100
$39.90

Description

Description PUSH WIRE connector for junction boxes; 4-conductor terminal block; suitable for Ex e II applications
Remarks

Safety information 2: To be used only in conjunction with a mounting carrier (773331).



Item properties

Miscellaneous

Name Value Unit
Total number of connection points
Total number of potentials
Color  light gray
Rated current [A]  24
Rated voltage EN (Ex e II) [V]  550
Connection technology  PUSH WIRE
Number of connection points connector
Actuation type  Push-in
Connectable conductor materials  Copper
Solid conductor  0.75 2.5 mm / 18 14 AWG
Stranded conductor  16 12 AWG
Strip length  12 mm / 0.47 Inch
Type of wiring  Side-entry wiring
Fire load [MJ]  0.053  MJ
Weight [g]  2.432
Width  13 mm / 0.512 Inch
Height  13.1 mm / 0.516 Inch
Depth  19.5 mm / 0.768 Inch
Safety information 1  275 V at a distance < 10 mm to parts of other potentials
View AllClose

Additional Information

actuation type:
Push-in
connectable conductor materials note:
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically destroys the oxide film during
color:
Light gray
connectable conductor materials:
Copper || Aluminum
connection technology:
PUSH WIRE
continuous operating temperature:
105 C
country of origin sales organisation germany:
CN
cover color:
Light gray
depth:
19.5 mm / 0.768 inch
fire load:
0.053 MJ
flammability class per ul94:
V2
height:
13.1 mm / 0.516 inch
packaging type:
Box
rated current ex e ii:
24 A
rated voltage en ex e ii:
550 V
ratings per:
EN 60079
safety information 2:
To be used only in conjunction with a mounting carrier (773331).
solid conductor:
0.75 2.5 mm / 18 14 AWG
stranded conductor:
0.75 2.5 mm / 16 12 AWG
strip length:
12 mm / 0.47 inch
surrounding air temperature operation:
60 C
weight:
2.432 g
width:
13 mm / 0.512 inch
wiring direction:
Side-entry wiring
