WAGO 782-623
- SKU:
- 782-623
- Condition:
- New
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 43.5 mm / 1.713 inch
- design:
- Angled
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.300 MJ
- flammability class per ul94:
- V0
- height:
- 82.5 mm / 3.248 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- rated current:
- 41 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 25.195 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Front-entry wiring
Description

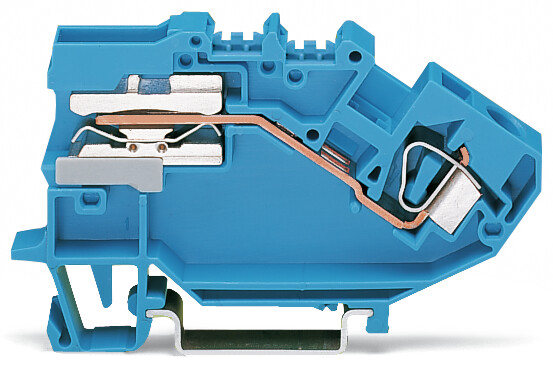

Power distribution disconnect terminal block; angled; rail mount; 1-conductor; 8 mm wide; blue
