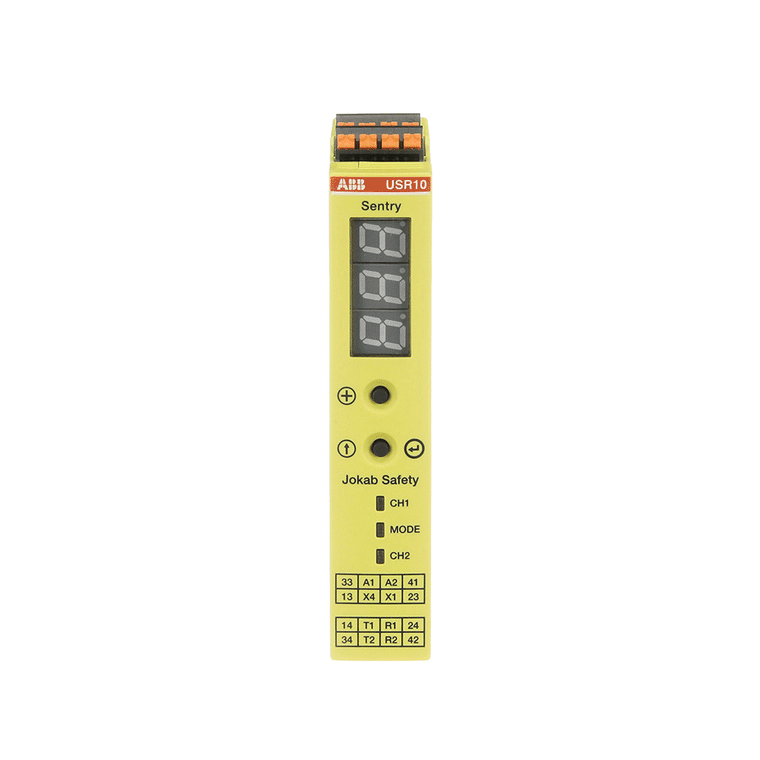

ABB Sentry USR10P Safety Relay with Delayable Outputs and Display - 3NO+1NC, 24VDC, Push-In Terminals
ABB
$424.45
The ABB Sentry USR10P Safety Relay with Delayable Outputs and Display is a versatile and reliable solution for monitoring a wide range of safety devices. Designed to handle safety devices with contacts, OSSD outputs, two-hand devices, safety mats, and safety edges/bumpers, this safety relay ensures optimal protection in various industrial applications. It features 3 normally open (NO) and 1 normally closed (NC) contacts, powered by a 24VDC supply, and equipped with convenient push-in spring terminals for easy installation.
The Sentry USR10P offers advanced timer functions with a range of 0-999 seconds and an impressive accuracy of better than 1%. Users can select from OFF-delay, ON-delay, Time bypass, and Time reset functions to suit their specific needs. The front display simplifies configuration and troubleshooting by showing error codes and logs, while a password protection feature secures custom configurations.
This safety relay supports both manual and automatic reset options and is suitable for safety applications up to PLe / SIL3. Its high output current capacity of up to 6 A eliminates the need for an intermediary contactor, and the multi-reset feature allows up to 10 safety relays to be connected to a single reset light-button. Available with detachable push-in or screw terminals, the Sentry USR10P is a flexible and efficient choice for enhancing safety in your operations.
