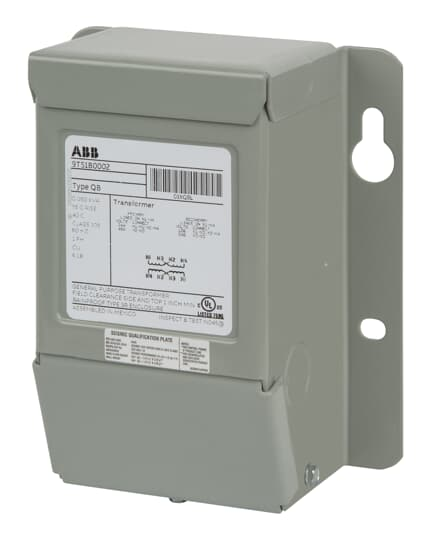

ABB 9T51B0113 1C, 3Kva, 120X240-12/24, 100C, 3R, 60Hz, Qb
ABB
$1,507.31
ABB's Buck-boost transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%. Buck boost transformers comply with NEC Article 210-9, Exception 1, when field connected as an autotransformer.
- Input Voltage:
- 120x240
- Frequency Rating:
- 60
- Width:
- 9.38
- Enclosure:
- NEMA 3R
- Output Voltage:
- 45650
- Insulation:
- IS-12
- Phase:
- 1
- Temperature Rating:
- 40
- Height:
- 13.12
- Standard:
- Yes
- Wattage:
- 3
- Spec Sheet:
- View
