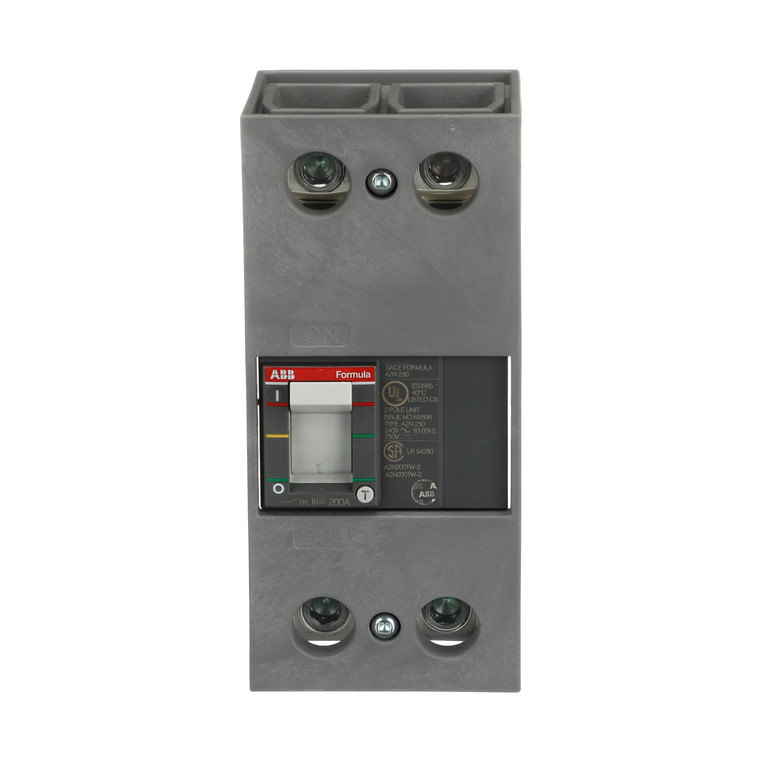

ABB A2A200TL-2 Formula Molded Case Circuit Breaker

ABB A2A200TL-2 Formula Molded Case Circuit Breaker, A2A, 250A Frame, 2-Pole, 200A, TMF Thermal-Magnetic, UL, with KA2225 Lug Kit (Bottom)

ABB
SKU:
A2A200TL-2
|
UPC:
8056221048477
Availability:
Commonly stocked at factory
$372.75
Condition:
New
Current Stock:
Description

ABB A2A200TL-2 Formula Molded Case Circuit Breaker

The ABB A2A200TL-2 is a Formula Molded Case Circuit Breaker (A2A, 250A Frame, 2-Pole, 200A, TMF Thermal-Magnetic, UL, with KA2225 Lug Kit (Bottom)). ABB Formula breakers are compact molded case breakers for feeder and branch protection in panelboards, switchboards and OEM equipment. The TMF trip unit has fixed thermal (200 A) and magnetic (2000 A) thresholds.

Automation Distribution supplies the A2A200TL-2 as an authorized ABB distributor.

Key Features

  • Frame: Formula A2
  • Breaking Capacity Version: A
  • Frame Rating: 250 A
  • Poles: 2
  • Rated Current (In): 200 A
  • Trip Unit: TMF thermal-magnetic, fixed thresholds
  • Magnetic Trip (Im): 2000 A
  • Standard: UL 489
  • Lug Kit: KA2225 installed on bottom

Specifications

ManufacturerABB
Part NumberA2A200TL-2
Product TypeFormula Molded Case Circuit Breaker
FrameFormula A2
Breaking Capacity VersionA
Frame Rating250 A
Poles2
Rated Current (In)200 A
Trip UnitTMF thermal-magnetic, fixed thresholds
Magnetic Trip (Im)2000 A
StandardUL 489
Lug KitKA2225 installed on bottom

Authorized ABB Distributor. Automation Distribution supplies genuine ABB electrical products. Contact our team for technical support, cross-references or volume pricing on the A2A200TL-2.
