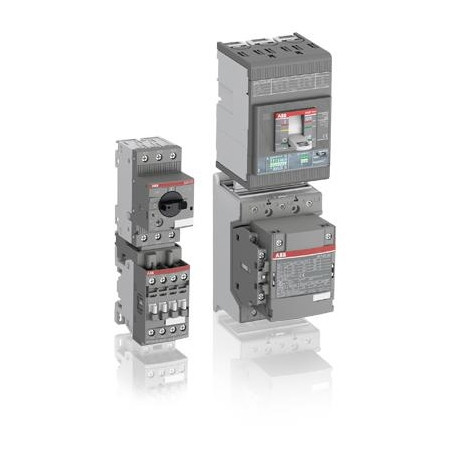

ABB A580S-70E8 ab a580s70e8 a580 3ph str,100-250vd

(No reviews yet) Write a Review
SKU:
A580S-70E8
Condition:
New
  • ABB A580S-70E8 ab a580s70e8 a580 3ph str,100-250vd
  • ABB A580S-70E8 ab a580s70e8 a580 3ph str,100-250vd

Description

Overview

ABB

AC Non-Reversing, A Series

Item# A580S-70E8 - CONTROL PRODUCT

A Series Information
  • 24~600 VAC/VDC Coils
  • Up to 450 HP @ 240V
  • Up to 900 HP @ 480V
  • UL; CSA Approved
  • Up to 1650 Amps
A-Line contactors are mainly used for controlling 3-phase motors and for controlling power circuits corresponding to their operating characteristics up to 690 and even 1000 VAC and 440 VDC. A variety of accessories are available for top or side-mount versions.

  • 3 or 4 Poles
  • Touch Safe Design
  • Easy Maintenance of Contacts and Coil Inspection

Specifications

Item Number:
A580S-70E8
UPC:
662019152134
Brand:
ABB
Item Category:
Starters
Subcategory:
AC Non-Reversing
Series:
A
Style:
Open
Industry Standard:
IEC
Poles:
3NO
Coil Voltage:
100~250 VAC
Motor FLA (Amps):
270~800
UL Motor Starting (AC3):
590
Max HP 200/208V 3PH:
200 Horsepower
Max HP 230/240V 3PH:
250 Horsepower
Max HP 460/480V 3PH:
500 Horsepower
Max HP 575/600V 3PH:
600 Horsepower
Coil Type:
Magnetic
Auxiliary Contacts:
1NO; 1NC
Overload Type:
Electronic
Overload Series:
E800DU
Termination:
Screw
Mounting:
Surface
H x W x D:
21.66 in x 9.65 in x 9.52 in
  Net Weight:
1 lb
  Gross Weight:
1 lb
