Description
Overview
ABB
AC Non-Reversing, A Series

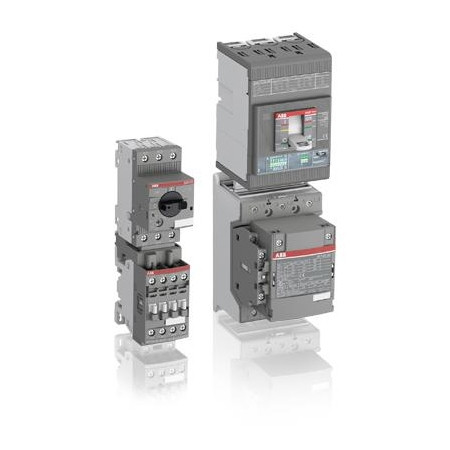

Item# A9S-84F - STARTER, 120VAC, 1.0-1.4 FLA
A Series Information
- 24~600 VAC/VDC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1650 Amps
- 3 or 4 Poles
- Touch Safe Design
- Easy Maintenance of Contacts and Coil Inspection
Specifications
Item Number:
A9S-84F
UPC:
6620196817410
Brand:
ABB
Item Category:
Starters
Subcategory:
AC Non-Reversing
Series:
A
Style:
Open
Industry Standard:
IEC
Poles:
3NO
Coil Voltage:
110~120 VAC
Motor FLA (Amps):
1~1.4
UL Motor Starting (AC3):
9
Max HP 200/208V 3PH:
2 Horsepower
Max HP 230/240V 3PH:
2 Horsepower
Max HP 460/480V 3PH:
5 Horsepower
Max HP 575/600V 3PH:
7.5 Horsepower
Coil Type:
Magnetic
Auxiliary Contacts:
1NO
Overload Type:
Thermal
Overload Series:
TA25DU
Termination:
Screw
Mounting:
Surface
H x W x D:
5.26 in x 1.73 in x 3.98 in
Net Weight:
1 lb
Gross Weight:
1 lb
