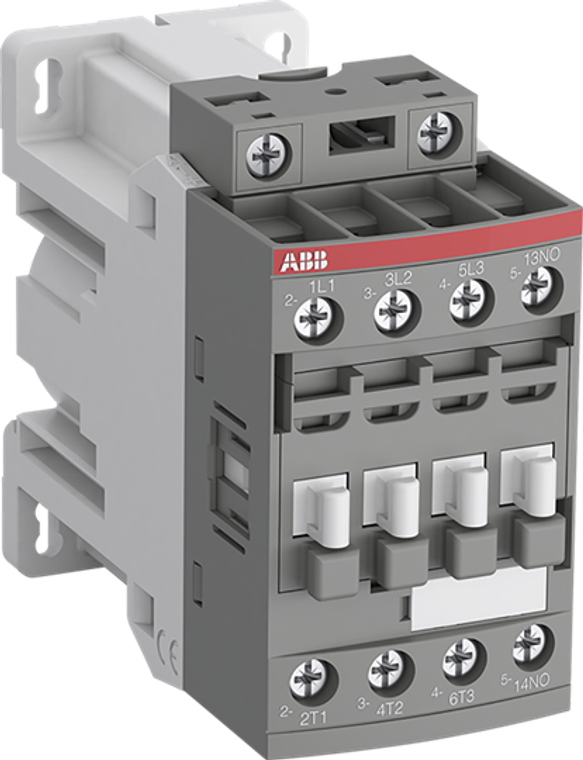

ABB AF09Z-30-10-30 3-Pole Contactor with 24V DC Coil and Surge Suppression for Efficient Motor Control
ABB
$84.66
The AF09Z-30-10-30 is a robust 3-pole contactor designed for efficient control of power circuits up to 690 V AC and 220 V DC. Ideal for managing 3-phase motors and non-inductive or slightly inductive loads, this contactor features a 24 V DC electronic coil interface with built-in surge suppression, ensuring reduced holding coil consumption down to 1.7 W. This allows for direct control by PLC-output ? 250 mA 24 V DC without the need for an additional interface relay, optimizing panel energy consumption. The AF09Z-30-10-30 includes one built-in auxiliary contact and supports easy expansion with front and side-mounted add-on auxiliary contact blocks. Compliant with IEC standards, it offers mechanically-linked auxiliary contacts and N.C. mirror contacts for enhanced safety. With a block type design, this contactor is suitable for controlling motors up to 4 kW / 400 V AC or 5 hp / 480 V UL, and switching power circuits up to 25 A. A wide range of accessories is available to further customize and extend its functionality.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- DC Operation 24 V
- Spec Sheet:
- View
