ABB AFS26-30-22-11 Safety Contactor

ABB AFS26-30-22-11 AFS26 3-Pole Safety Contactor, 2NO+2NC Auxiliary, 24-60V AC/20-60V DC Coil

ABB
SKU:
AFS26-30-22-11
|
UPC:
3471523005471
Availability:
Commonly stocked at factory
$249.11
Condition:
New
Current Stock:
Description

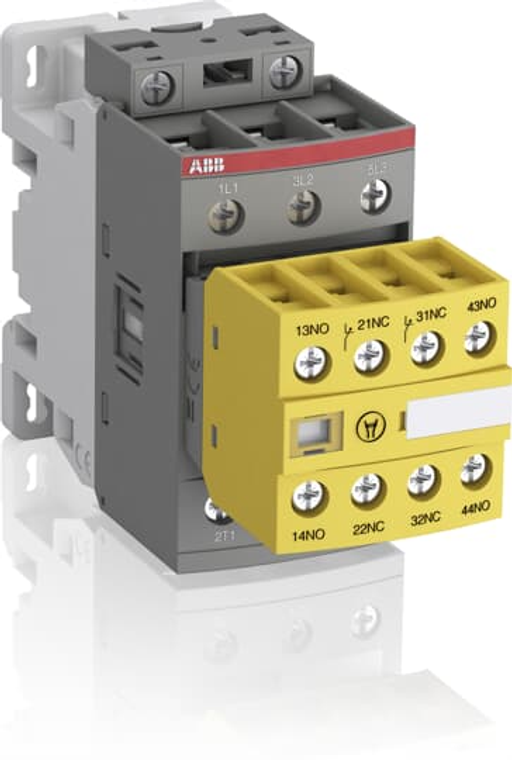

ABB AFS26-30-22-11 3-Pole Safety Contactor, 24-60V AC/20-60V DC Coil

The ABB AFS26-30-22-11 is a 3-pole safety contactor from the ABB AFS26 range with 2NO+2NC auxiliary contacts and a 24-60 V AC (50/60 Hz) / 20-60 V DC coil. Its electronic coil interface accepts a wide control voltage range, so one coil covers multiple supply voltages, and built-in surge suppression removes the need for add-on suppressors. Fixed front-mounted auxiliary blocks with mechanically linked and mirror contacts support safe monitoring of the main circuit.

It is typically used for machine safety circuits that need mechanically linked and mirror contacts. Automation Distribution supplies the AFS26-30-22-11 as an authorized ABB distributor.

Key Features

  • 3-Pole main contacts
  • 2NO+2NC auxiliary contacts
  • Coil voltage: 24-60 V AC (50/60 Hz) / 20-60 V DC
  • Built-in surge suppression, no add-on suppressor needed
  • Screw Terminals

Specifications

ManufacturerABB
Part NumberAFS26-30-22-11
SeriesAFS26
Product TypeSafety Contactor
Number of Poles3
Auxiliary Contacts2NO+2NC
Coil Voltage24-60 V AC (50/60 Hz) / 20-60 V DC
Terminal TypeScrew Terminals

Part Number Breakdown: AFS26-30-22-11

CodeMeaning
AFS26Safety Contactor frame AFS26
30Main poles: 3-Pole
22Auxiliary contacts: 2NO+2NC
11Coil code: 24-60 V AC (50/60 Hz) / 20-60 V DC

Authorized ABB Distributor. Automation Distribution supplies genuine ABB motor control products. Contact our team for technical support, cross-references or volume pricing on the AFS26-30-22-11.

Additional Information
Series:
AFS26
Number of Poles:
3
Auxiliary Contacts:
2NO+2NC
Coil Voltage:
24-60 V AC (50/60 Hz) / 20-60 V DC
Terminal Type:
Screw Terminals
Spec Sheet:
View
