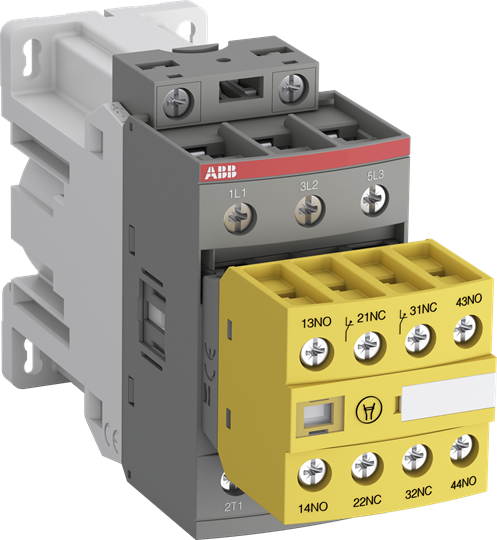

ABB AFS30Z-30-22-30 3-Pole Contactor with Auxiliary Contacts for Machine Safety, 24V DC Control Circuit, Yellow Housing
ABB
$281.23
The ABB AFS30Z-30-22-30 Afs30Z is a robust 3-pole contactor designed for machine safety applications, featuring fixed front-mounted auxiliary contact blocks with 2 normally open (N.O) and 2 normally closed (N.C) contacts. Engineered for enhanced safety, it includes mechanically linked and mirror contacts, ensuring reliable system status feedback. The contactor operates with a dedicated 24 V DC control circuit, optimized for direct PLC-output control with low holding consumption, reducing panel energy usage. Its yellow housing allows for easy identification, while the built-in surge suppression and protective cover prevent manual operation. The AFS30Z-30-22-30 is capable of controlling motors up to 15 kW at 400 V AC or 20 hp at 480 V UL, and can switch power circuits up to 50 A. Compliant with EN ISO 13849 and EN 62061 standards, it guarantees safe machinery operation. The AF technology incorporated provides a wide control voltage range, managing voltage variations effectively, making it a compact and efficient solution for modern industrial applications.
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 24 V
- Terminal Type:
- Screw Terminals
- Spec Sheet:
- View
