ABB CMS-100PS CMS Current Sensor, 18mm, Solid-Core, 80A, PS Version
ABB
$399.02

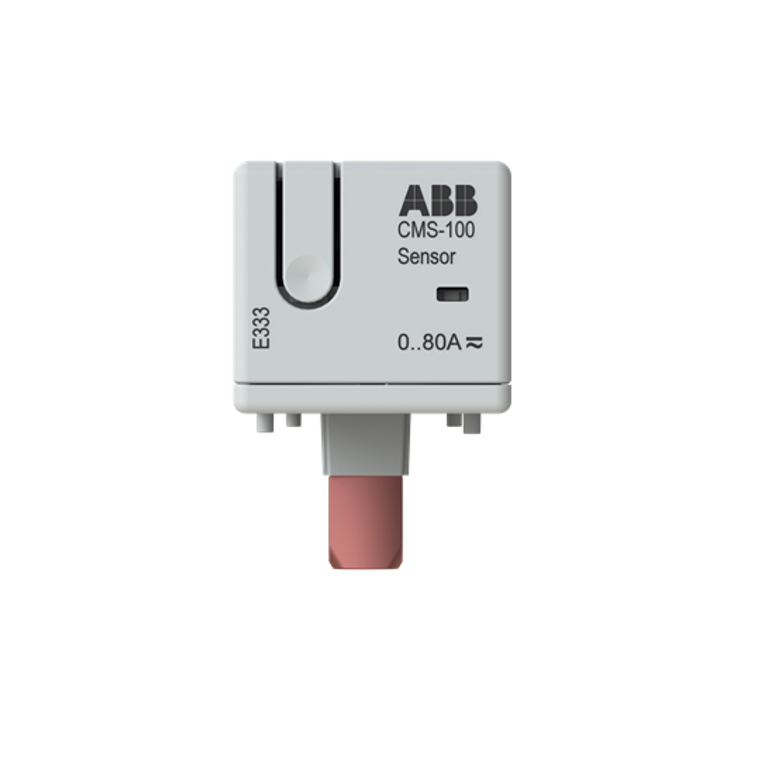

ABB CMS-100PS CMS Current Sensor
The ABB CMS-100PS is a CMS Current Sensor (18mm, Solid-Core, 80A, PS Version). CMS sensors are part of ABB's Circuit Monitoring System: each sensor measures AC and DC current on one circuit and reports it to a CMS control unit, so energy use and load on individual branch circuits can be tracked.
Automation Distribution supplies the CMS-100PS as an authorized ABB distributor.
Key Features
- Sensor Diameter: 18 mm
- Core Type: Solid-Core
- Measuring Range: up to 80 A
- Mounting: PS Version
Specifications
| Manufacturer | ABB |
| Part Number | CMS-100PS |
| Product Type | CMS Current Sensor |
| Sensor Diameter | 18 mm |
| Core Type | Solid-Core |
| Measuring Range | up to 80 A |
| Mounting | PS Version |
Authorized ABB Distributor. Automation Distribution supplies genuine ABB modular DIN rail products. Contact our team for technical support, cross-references or volume pricing on the CMS-100PS.
- Sensor Diameter:
- 18 mm
- Core Type:
- Solid-Core
- Measuring Range:
- up to 80 A
- Mounting:
- PS Version
- Spec Sheet:
- View
