ABB CMS-121DR CMS Current Sensor, 18mm, Open-Core, 40A, DIN Rail Mount
ABB
$387.29

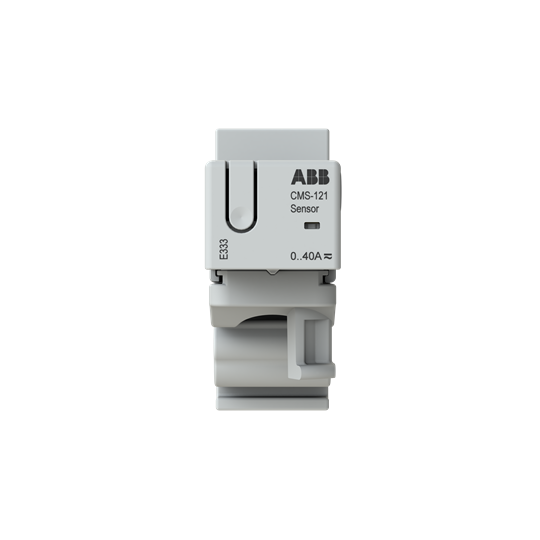

ABB CMS-121DR CMS Current Sensor
The ABB CMS-121DR is a CMS Current Sensor (18mm, Open-Core, 40A, DIN Rail Mount). CMS sensors are part of ABB's Circuit Monitoring System: each sensor measures AC and DC current on one circuit and reports it to a CMS control unit, so energy use and load on individual branch circuits can be tracked. Open-core sensors can be fitted around existing wiring without disconnecting it.
Automation Distribution supplies the CMS-121DR as an authorized ABB distributor.
Key Features
- Sensor Diameter: 18 mm
- Core Type: Open-Core
- Measuring Range: up to 40 A
- Mounting: DIN Rail Mount
Specifications
| Manufacturer | ABB |
| Part Number | CMS-121DR |
| Product Type | CMS Current Sensor |
| Sensor Diameter | 18 mm |
| Core Type | Open-Core |
| Measuring Range | up to 40 A |
| Mounting | DIN Rail Mount |
Authorized ABB Distributor. Automation Distribution supplies genuine ABB modular DIN rail products. Contact our team for technical support, cross-references or volume pricing on the CMS-121DR.
- Sensor Diameter:
- 18 mm
- Core Type:
- Open-Core
- Measuring Range:
- up to 40 A
- Mounting:
- DIN Rail Mount
- Spec Sheet:
- View
