Description
Overview
Abb
Ac Non-Reversing Iec Contactors, Star Series

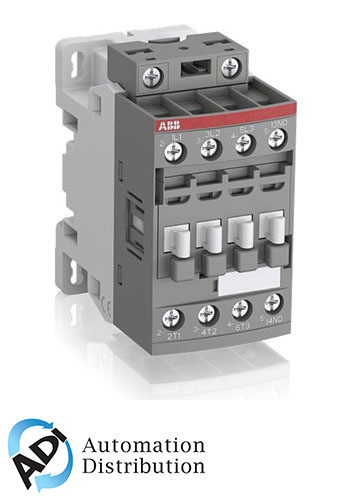

Item# Af12-30-01-14 - Contactor, 3-P N/O, 250-500Vac/Dc Coil, Includes 1Nc Aux Contact
Star Series Information
- Af Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used For Different Control Voltages Used Worldwide Without Any Coil Change
- The Built-In N.C. Auxiliary Contact Is A Mirror Contact In Compliance With Annex F Of Iec 60947-4-1
- Af Contactors Have Built-In Surge Protection And Do Not Require Additional Surge Suppressors
- Only Four Coils Cover Control Voltages Between 24-500 V 50/60 Hz Or 20-500 V Dc
- Electronic Coil Interface Accepts A Wide Control Voltage Range
Specifications
Item Number: &Nbsp;
Af12-30-01-14
Upc: &Nbsp;
804325538459
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Star
Coil Voltage:
250~500 Vac/250~500 Vdc
Coil Type:
Electronic
Poles:
3No
Auxiliary Contacts:
1Nc
Termination:
Screw
General Purpose (Ac1):
28 Amps
Ul Motor Switching (Ac3):
12 Amps
Max Hp 115V 1Ph:
1 Horsepower
Max Hp 230/240V 1Ph:
2 Horsepower
Max Hp 230/240V 3Ph:
3 Horsepower
Max Hp 460/480V 3Ph:
7.5 Horsepower
Max Hp 575/600V 3Ph:
10 Horsepower
Approvals:
Culus
&Nbsp;&Nbsp;Net Weight:
1 Lb
