Description
Overview
Abb

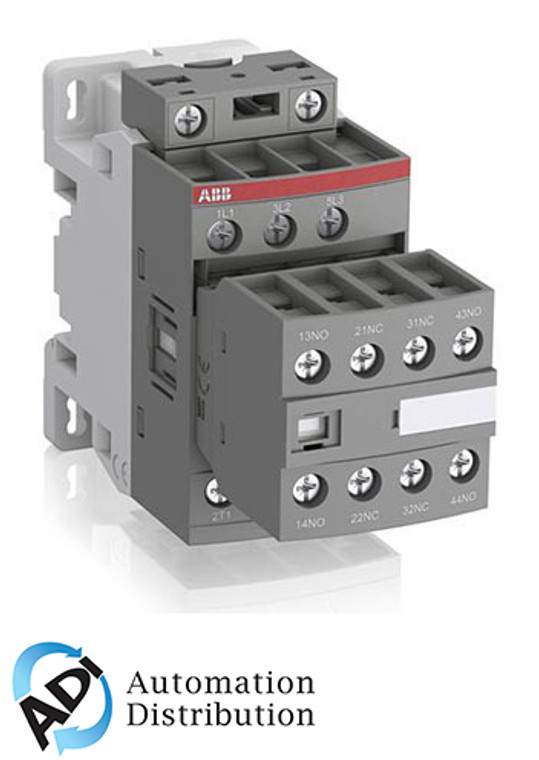

Ac Non-Reversing Iec Contactors, Af Series
Item# Af12-30-22-14
Contactor, 3-P N/O, 250-500Vac/Dc Coil, Includes 2No &Amp; 2Nc Auxiliary Contacts
Specifications
Item Number: &Nbsp;
Af12-30-22-14
Upc: &Nbsp;
888614119697
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
250~500 Vac/Vdc
Coil Type:
Magnetic
Poles:
3No
Auxiliary Contacts:
2No; 2Nc
Termination:
Screw
General Purpose (Ac1):
28 Amps
Ul Motor Switching (Ac3):
12 Amps
Max Hp 200/208V 3Ph:
3 Horsepower
Max Hp 230/240V 3Ph:
3 Horsepower
Max Hp 460/480V 3Ph:
7.5 Horsepower
Max Hp 575/600V 3Ph:
10 Horsepower
H X W X D:
3.39 In X 1.77 In X 3.03 In
&Nbsp;&Nbsp;Net Weight:
10.93 Oz
