ABB

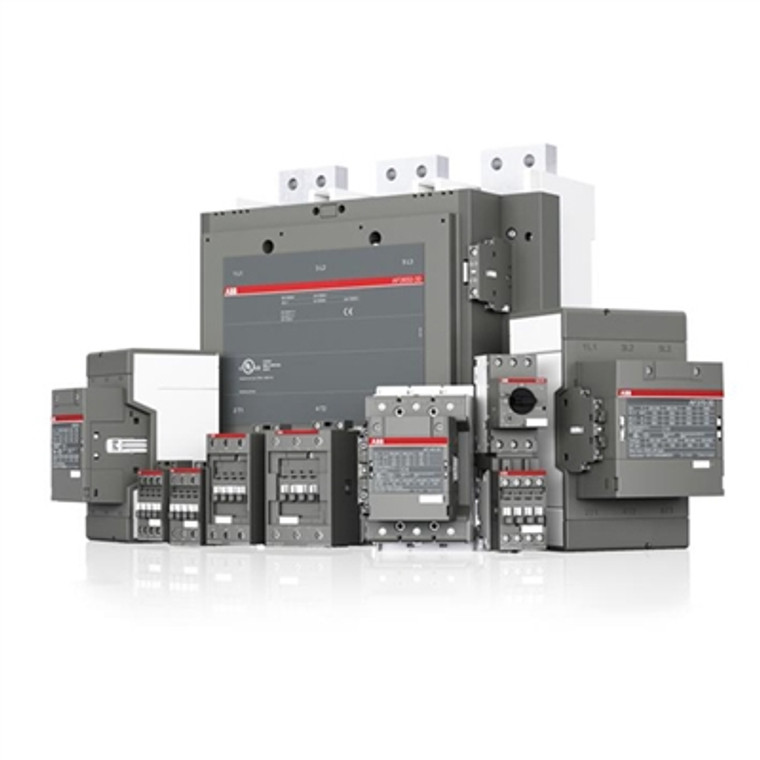

AC Mechanically Interlocked IEC Contactors, A Series
Item# AF145M-30-11-72 - CONTACTOR, MECH INTERLOCKED, 145 AMP
A Series Information
- 24~600 VAC/VDC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1650 Amps
- 3 or 4 Poles
- Touch Safe Design
- Easy Maintenance of Contacts and Coil Inspection
Specifications
Item Number:
AF145M-30-11-72
UPC:
804325859936
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Mechanically Interlocked IEC
Series:
A
Nominal Coil Voltage:
24 VDC;48 VDC
Coil Voltage:
20~60 VDC
Coil Type:
Magnetic
Poles:
3NO
Auxiliary Contacts:
1NO; 1NC
Termination:
Box Lug
Max HP 200/208V 3PH:
40 Horsepower
Max HP 230/240V 3PH:
50 Horsepower
Max HP 460/480V 3PH:
100 Horsepower
Max HP 575/600V 3PH:
125 Horsepower
General Purpose (AC1):
230 Amps
UL Motor Switching (AC3):
130 Amps
Net Weight:
5 lb
