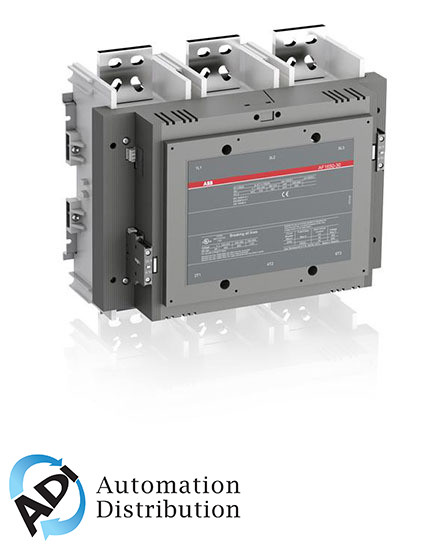

ABB AF1650-30-22-70 AC Non-Reversing IEC Contactor, 3NO Poles, 100~250 VAC/VDC, 1650A AC1, 1080A AC3
The ABB AF1650-30-22-70 is a robust AC non-reversing IEC contactor from the AF series, designed to handle demanding applications with ease. This contactor features a magnetic coil with a voltage range of 100~250 VAC/VDC, ensuring compatibility across various operating voltages. It is equipped with three normally open (3NO) poles and additional auxiliary contacts (2NO; 2NC) for enhanced functionality.
With a frame size of AF1650, this contactor supports a general-purpose (AC1) rating of 1,650 amps and a UL motor switching (AC3) capacity of 1,080 amps. It is capable of managing up to 450 horsepower at 230/240V, 900 horsepower at 460/480V, and 1,000 horsepower at 575/600V for 3-phase motors, making it suitable for high-power applications.
The contactor's dimensions are 17.23 inches in height, 13.39 inches in width, and 9.6 inches in depth, with a net weight of 60 lbs, ensuring it can be accommodated in various setups. Termination is facilitated through a screw connection, providing a secure and reliable installation.
Ideal for a wide range of industrial applications, the ABB AF1650-30-22-70 contactor offers durability and high performance, ensuring efficient operation and control of electrical circuits in complex machinery.
