ABB

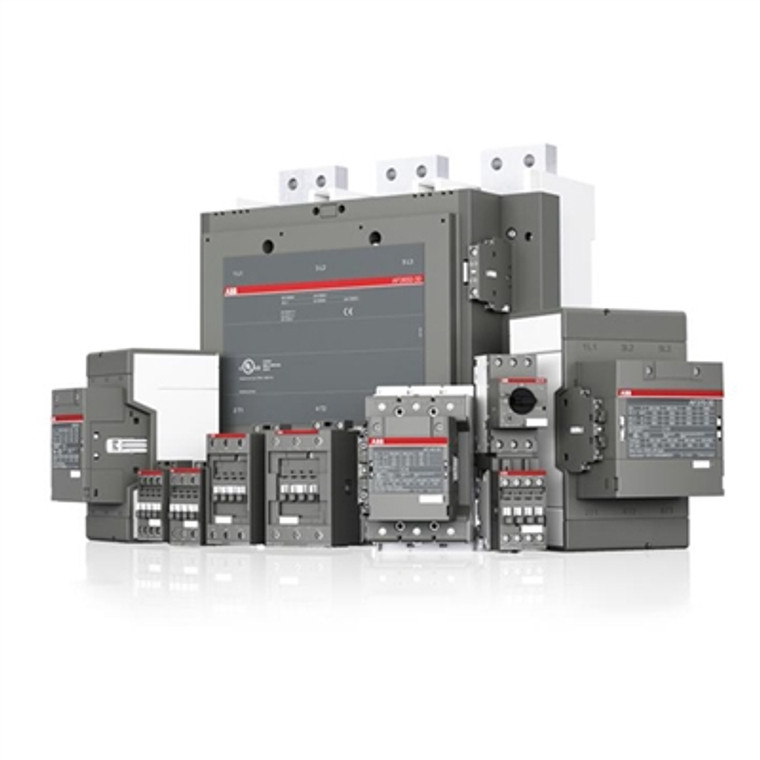

AC Non-Reversing NEMA Contactors, STAR Series
Item# AF1650N83011-70 - CONTACTOR, 3P, NEMA SIZE 8, 100-250V
STAR Series Information
- AF Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used for Different Control Voltages Used Worldwide without Any Coil Change
- The Built-In N.C. Auxiliary Contact Is a Mirror Contact in Compliance with Annex F of IEC 60947-4-1
- AF Contactors Have Built-In Surge Protection and Do Not Require Additional Surge Suppressors
- Only Four Coils Cover Control Voltages between 24-500 V 50/60 Hz or 20-500 V DC
- Electronic Coil Interface Accepts a Wide Control Voltage Range
Specifications
Item Number:
AF1650N83011-70
UPC:
662019140193
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Non-Reversing NEMA
Series:
STAR
Coil Voltage:
100~250 VAC/VDC
Nominal Coil Voltage:
120 VAC;208 VAC;240 VAC;120 VDC
Coil Type:
Magnetic
Poles:
3NO
NEMA Frame Size:
8
Auxiliary Contacts:
1NO; 1NC
Termination:
Box Lug
NEMA Continuous Amps (I):
1,215 Amps
Max HP 230/240V 3PH:
450 Horsepower
Max HP 460/480V 3PH:
900 Horsepower
Max HP 575/600V 3PH:
900 Horsepower
H x W x D:
15.43 in x 17.24 in x 9.61 in
Net Weight:
1 lb
Gross Weight:
1 lb
